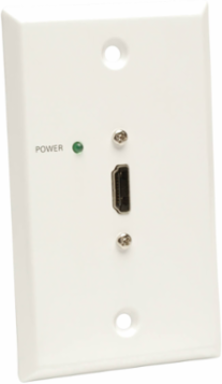

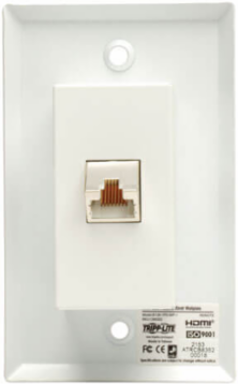

Tripp Lite B126-1P0-WP-1 HDMI Over Cat5/6 Passive Extender Wall Plate, 1080p Up to 50 ft, White
- MPN: B126-1P0-WP-1
- UPC: 037332162854
- PPN: TRP-B126-1P0-WP-1
CAD
$31.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Works with Tripp Lite’s B126-Series transmitters to extend an HDMI signal via one Cat5e/6 cable up to 100 ft. to a projector, monitor or television. Ideal for digital signs, schools and trade show presentations.
Features
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play—no software or drivers to install

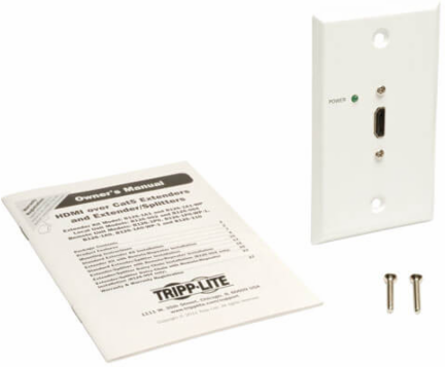

- Included mounting hardware lets you install the unit on a wall
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Max 1080p Range
- 50 ft
- Max 720p Range
- 100 ft
- Max 800 x 600 Range
- 100 ft
- Max 1600 x 1200 Range
- 100 ft
- Max 480p Range
- 100 ft
- Supported Video Resolutions
- Up to 1080p (60 Hz)
- Color Depth
- 24-bit True Color (8 bits per channel)
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 20% to 90% RH, Non-Condensing
- Ports
- 1
- Connector Side B
- HDMI (Female)
- Included Mounting Accessories
- Yes
Max 1080i Range100 ft
Max 640 x 480 Range100 ft
Max 1440 x 900 Range100 ft
Max 480i Range100 ft
Max 1024 x 768 Range100 ft
Supported AudioStereo and 7.1-channel surround sound, multi-channel or PCM
HDCP CompatibilityYes
Storage Temperature Range-4 to 140 F (-20 to 60 C)
Unit Dimensions4.5 x 2.75 x 1 in
Connector Side ARJ45 (Female)
ColorWhite
Warranty1-year limited warranty
