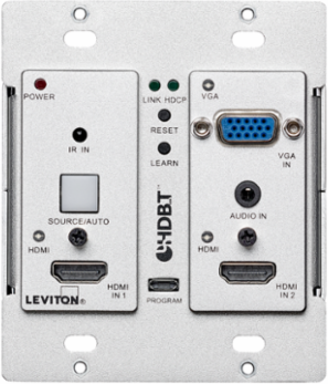

Leviton 41920-HRC Autoswitching HDBaseT Extender Wallplate, 1080p/4K HDMI & VGA Support up to 70m
Leviton 41920-HRC Autoswitching HDBaseT Extender Wallplate, 1080p/4K HDMI & VGA Support up to 70m
- MPN: 41920-HRC
- UPC: 078477726914
- PPN: LEV-41920-HRC
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$915.50/ EA
Description
Use the Leviton Autoswitching HDBaseT Extender Wallplate to connect, switch, and extend HDMI and VGA signals to displays or projectors in conference rooms, classrooms, and control centers. The wallplate inputs are automatically switched (or manually selected) to permit seamless transfer from one source to the next. It can extend signals up to 70 meters (230 feet) over a single category cable, and uses certified HDBaseT technology for a complete professional plug-and-play installation. The extender utilizes Power over HDBaseT (PoH) to provide the flexibility for powering the transmitter from the receiver at the display over category cable
Features
- HDBaseT Alliance certified
- Matte anodized aluminum finish complements Decora stainless steel wallplate (sold separately)
- Delivers full uncompressed HD video in 3D, 2K, and 4K over a single category cable with multi-channel audio supporting all standard formats, including Dolby Digital, DTS, Dolby TrueHD, and DTS HD-Master Audio
- Resolution capability: 1080p 36 bit deep color at 60Hz and VESA resolutions up to 1920 x 1200 at 60Hz up to 70 meters (230 feet), 4K ultra high definition up to 2160p 24 bit true color at 30Hz with 4K chroma subsampling color palette 4:2:2 up to 40 meters (131 feet)
- Supports HDMI 1.4 features: EPG, CEC, EDID, and HDCP
- Built-in scaling function to automatically match VGA signals 1080p to display resolution
- PoH (power over HDBaseT) powered from the receiver at the display end
Specifications
Specifications
- Country of Origin
- China
RoHS CompliantTrue
