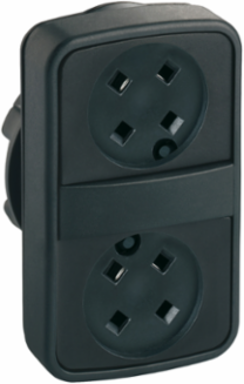

Schneider Electric ZB5AA79 Harmony XB5 Double-Headed Push Button Head, 22mm, IP66 Protection
- MPN: ZB5AA79
- PPN: SCH-ZB5AA79
CAD
$36.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This double head is supplied without cap. This allows users to customize control functions with desired caps for their machines operations. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Physical Attributes
- Color Of Marking
- black marking when white caps, white marking when green, red or black caps

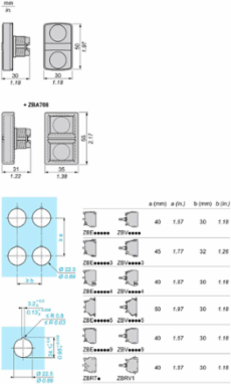

- Cad Overall Height
