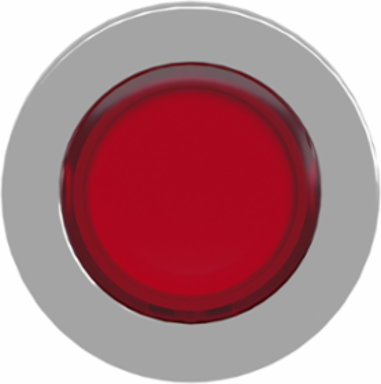

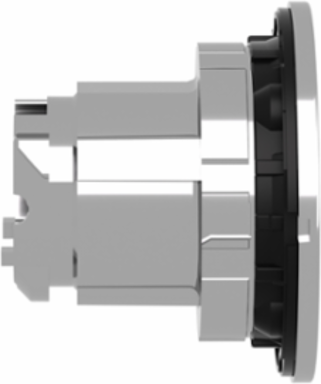

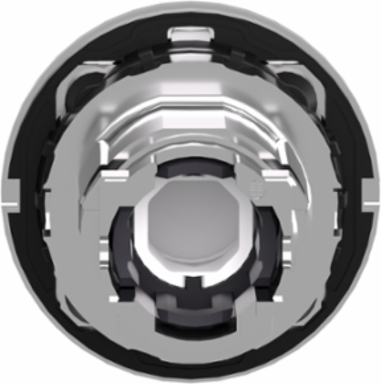

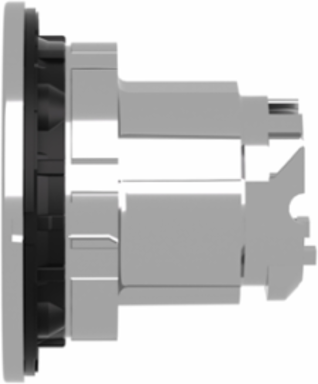

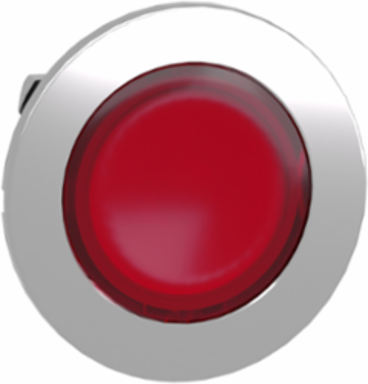

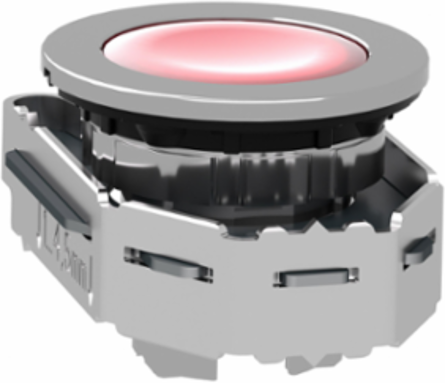

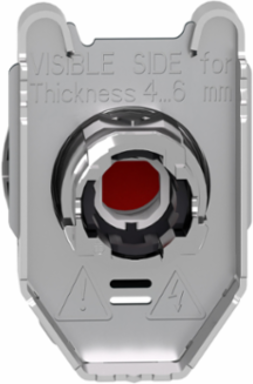

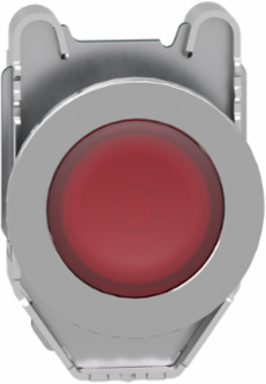

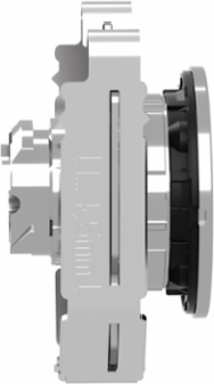

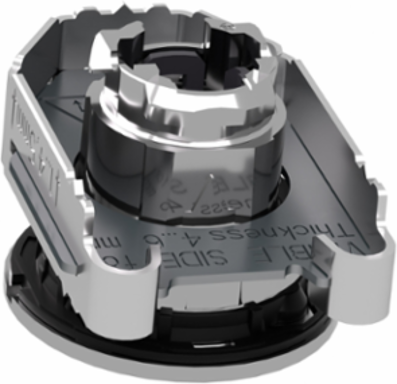

Schneider Electric ZB4FA48 Harmony XB4 Illuminated Push Button Head, 30.5 mm, Red, IP69K, Metal
- MPN: ZB4FA48
- PPN: SCH-ZB4FA48
CAD
$28.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes
- Cad Overall Depth
- 31 mm
- Cad Overall Width
- 36.6 mm
Cad Overall Height36.6 mm
Cap Operator Or Lens Colorred
Important Information Attributes
- Customizable
- 1, no
- Operator Profile
- red flush, flush
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Certificate Agency
- UL Listed, CSA, CCC, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0733634638
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.4111051008
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 10.42
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308035EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Average Percentage Of Recycled Metal Content
- 21 %
- Bezel Material
- chromium plated metal
- Device Short Name
- ZB4F
- Group Of Product
- flush push with inser of legend
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Marking
- unmarked
- Mounting Diameter
- 30.5 mm
- Overvoltage Category
- class I conforming to IEC 60536
- Product Or Component Type
- head for illuminated push-button
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.5 kg CO2 eq.
- Cap Operator Or Lens Color
- red
- Pep Code
- ENVPEP2308035_V1-EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Cap/Operator Or Lens Colour
- red
- Package Weight(Lbs)
- 62.000 g
- Warranty (In Months)
- 18
Electrical Composition CodeM1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, C3 6 single front mounting, C4 6 single and double front mounting, C14 2 single front mounting
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
X C Productflush push with inser of legend
Carbon Footprint Of The Distribution Phase [A4]0.0075847212, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0116330249, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Future Imap8.05
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content14 %
Compatibility CodeZB4
Gcr BridgeZB4FACUST03
Head Typebuilt-in-flush
Main Groupillum push-button
Mechanical Durability10000000 cycles
Operator Additional Informationfor insertion of legend
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Type Of Operatorspring return
Operator Profile 1 Operator Profileflush
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- Recycled Metal Content At Cr Level
- 21 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.5036863108
- Environmental Disclosure
- ENVPEP2308035_V1-EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308035EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308035_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for illuminated push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Overview Attributes
