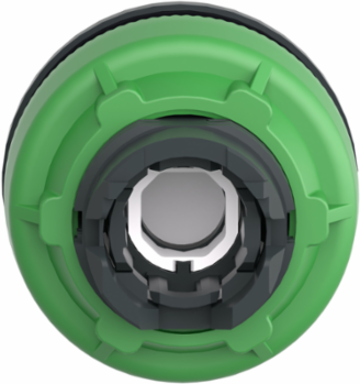

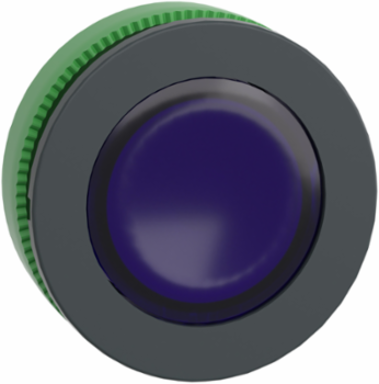

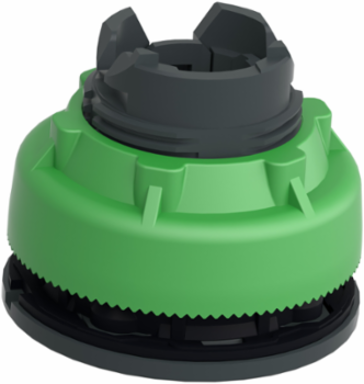

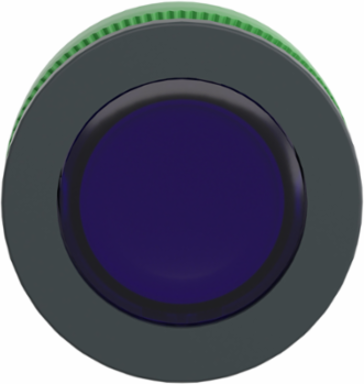

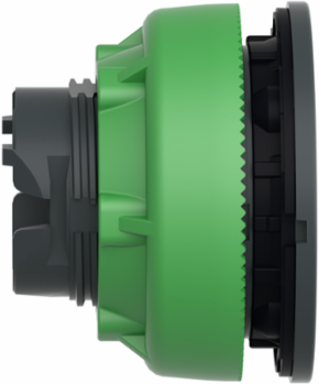

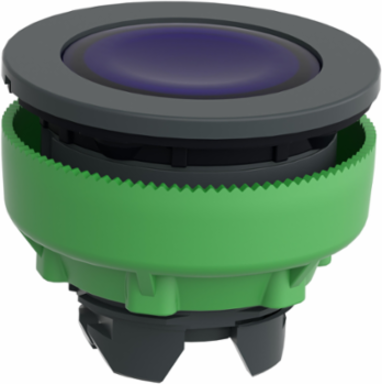

Schneider Electric ZB5FW363 Head for illuminated push button, Harmony XB5, blue, 30mm, universal LED, plain lens

  • MPN: ZB5FW363
  • PPN: SCH-ZB5FW363
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $29.14

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil

    Physical Attributes

    Cap Operator Or Lens Color
    blue
    Cad Overall Height
    37 mm
    Cad Overall Depth30 mm
    Cad Overall Width37 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Bezel Material
    dark grey plastic, dark grey plastic
    Electrical Composition Code
    M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED
    Operator Profile
    blue flush, unmarked
    Protective Treatment
    TC
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Cap Operator Or Lens Color
    blue
    Carbon Footprint Of The End Of Life Phase C1 To C4
    0 kg CO2 eq., 0.0201374415
    Carbon Footprint Of The Manufacturing Phase A1 To A3
    0.1 kg CO2 eq., 0.1380269006
    Operator Profile 1 Cap Operator Or Lens Color
    blue
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2404014EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Average Percentage Of Recycled Metal Content
    29 %
    Compatibility Code
    ZB5
    Gcr Bridge
    ZB5FWCUST03
    Head Type
    built-in-flush
    Main Group
    illum push-button
    Mechanical Durability
    10000000 cycles
    Overvoltage Category
    class II conforming to IEC 60536
    Range Of Product
    Harmony XB5
    Returnability
    Yes
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    0.2 kg CO2 eq.
    Warranty In Months
    18
    Pep Code
    ENVPEP1710010_V2
    Pep Verification Date
    2022-11-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
    Energy Model - End Of Life [C1-c4]
    Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Customizable1, no
    Mounting Diameter30.5 mm
    Product Or Component Typehead for illuminated push-button
    Shape Of Signaling Unit Headround
    Type Of Operatorspring return
    Carbon Footprint Of The Distribution Phase A40.0030076199, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0001709263, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
    Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content16 %
    Device Short NameZB5
    Group Of Productflush push integral LED
    Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    Markingunmarked
    Operator Additional Informationwith plain lens
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity1
    Sustainable PackagingYes
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    X C Productflush push integral LED
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionPushbutton is used to push the transmission mechanism to make the moving contact and the static contact press on or off and realize circuit switching. An illuminated pushbutton switch uses a small LED to emphasise the “ON” position over 10 years of product lifetime with 70% use rate.& 10& 10Product Standards:& 10UL 508& 10EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-1& 10JIS C8201-5-1; JIS C8201-1
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Espagnac (France)
    Energy Model - Use [B6]Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67, IP69, IP69K
    Product Compatibility
    universal LED
    Recycled Metal Content At Cr Level
    29 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.1613428883
    Environmental Disclosure
    ENVPEP1710010_V2
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2022-11-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2404014EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP1710010_V2
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    head for illuminated push-button
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC000221
    ETIM 9EC000221
