Square D

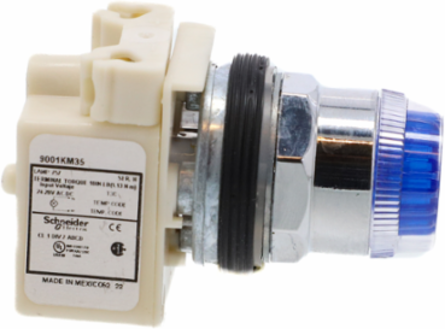

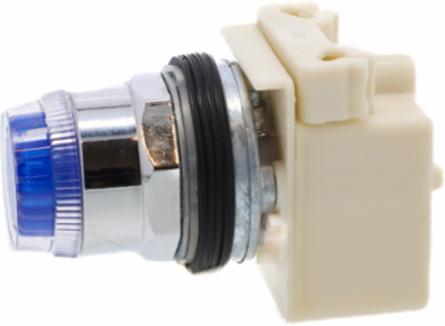

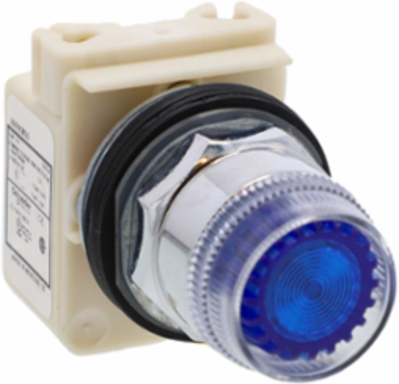

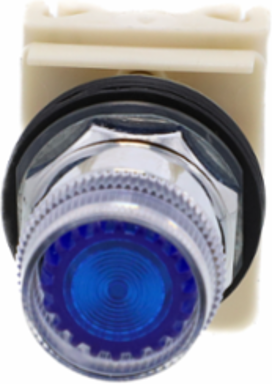

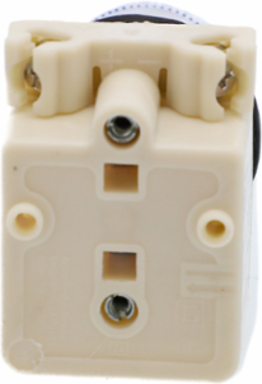

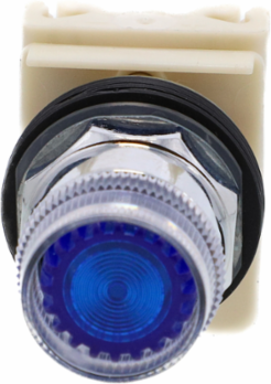

Square D 9001K1L35L Illuminated push-button head, Harmony 9001K, metal, plastic guard flush, blue, 30mm, spring return, 24-28V

Illuminated push-button head, Harmony 9001K, metal, plastic guard flush, blue, 30mm, spring return, 24-28V
Illuminated push-button head, Harmony 9001K, metal, plastic guard flush, blue, 30mm, spring return, 24-28V
Illuminated push-button head, Harmony 9001K, metal, plastic guard flush, blue, 30mm, spring return, 24-28V
Illuminated push-button head, Harmony 9001K, metal, plastic guard flush, blue, 30mm, spring return, 24-28V
Illuminated push-button head, Harmony 9001K, metal, plastic guard flush, blue, 30mm, spring return, 24-28V
  • MPN: 9001K1L35L
  • UPC: 785901318118
  • PPN: SCH-9001K1L35L

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$179.94/ EA

Description

This Harmony 9001K, modular illuminated flush blue push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Specifications

Specifications

Operator Additional Information
plastic guard
Operator Profile
blue flush
Device Short Name
9001K
Range Of ProductHarmony 9001K
Product Or Component Typehead for illuminated push-button

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121006EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

[Us] Rated Supply Voltage
24...28 V
Bezel Material
metal
Type Of Operator
spring return
Operator Profile
flush
Cap/Operator Or Lens Colour
blue
Contacts Type And Compositionwithout contact block
Mounting Diameter30 mm
Light Block Supplyfull voltage
Shape Of Signaling Unit Headround
