Schneider Electric 9001K2L38LYAH13 Illuminated push-button, Harmony 9001K, metal, projecting, amber, 30mm, spring return, LED yellow, 120V, 1 C/O

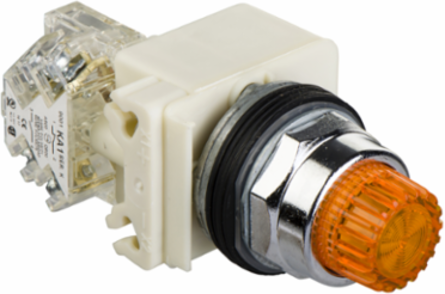

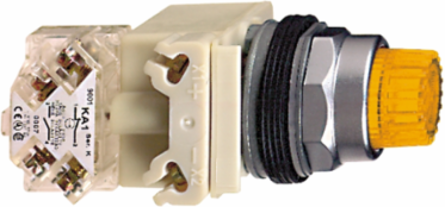

Illuminated push-button, Harmony 9001K, metal, projecting, amber, 30mm, spring return, LED yellow, 120V, 1 C/O
  • MPN: 9001K2L38LYAH13
  • UPC: 785901521228
  • PPN: SCH-9001K2L38LYAH13

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Looking to buy a large quantity?

    To view product inventory

    CAD$234.46/ EA

    Description

    This Harmony 9001K, modular illuminated projecting amber push button is supplied with integral LED. It has a chromium-plated metal bezel and is supplied with a 120V AC and has 1 changeover contact. This illuminated projecting push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Specifications

    Environment

    Product Certifications
    NEMA || UL 508
    Ambient Air Temperature For Storage
    -40-70 °C
    Standards
    JIS C 852 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1 || JIS C 4520
    Shock Resistance
    50 gn IEC 60068-2-27
    Protective Treatment
    TC
    Ambient Air Temperature For Operation-25-70 °C
    Overvoltage Categoryclass II IEC 61140
    Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
    Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
    Ip Degree Of ProtectionIP66 IEC 60529

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP121006EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Weee
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Complementary

    [Us] Rated Supply Voltage
    120 V
    [Icm] Rated Short-Circuit Making Capacity
    0.1 kA 480 V AC-15, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
    Light Source
    LED
    [Ui] Rated Insulation Voltage
    250 V 3)IEC 60947-1
    Bezel Material
    metal
    Connections - Terminals
    screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    Light Source Colour
    yellow
    Mechanical Durability
    5000000 cycles
    Positive Opening
    without
    Operator Profile
    projecting
    Operating Position
    any position
    Rated Breaking Capacity
    0.1 kA 480 V AC-15, 720 VA || 1.2 kA 480 V AC-15, 720 VA || 1.5 kA 240 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 120 V AC-15, 720 VA || 6 kA 600 V AC-15, 720 VA || 0.55 kA 600 V DC-13
    Cap/Operator Or Lens Colour
    amber
    Cad Overall Width
    54 mm
    Cad Overall Depth
    103 mm
    [Uimp] Rated Impulse Withstand Voltage
    2.5 kV IEC 60947-1
    Cad Overall Height
    42 mm
    Device Presentation
    complete product
    [Us] Rated Supply Voltage120 V AC/DC
    Contacts Type And Composition1 C/O
    Terminals Description Iso N°1(13-14-11-12)OF
    Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
    [Ie] Rated Operational Current0.55 A 125 V, DC-13, A600-Q600 NEMA
    Contact Operationstandard
    Contacts Materialsilver alloy contacts
    Light Block Supplydirect
    Mounting Diameter30 mm
    Type Of Operatorspring return
    [Ith] Conventional Free Air Thermal Current10 A
    Shape Of Signaling Unit Headoctagonal
    Tightening Torque0.8-0.8 N.m IEC 60947-1
    Shape Of Screw Headcross slotted
    Net Weight0.166 kg
    Size30 mm
    Bulb BaseBA 9s

    Specifications

    Operator Additional Information
    without guard
    Operator Profile
    amber projecting, unmarked
    Product Or Component Type
    illuminated push-button
    Range Of ProductHarmony 9001K
    Type Of Operatorspring return
    Device Short Name9001K

    Downloads
