Schneider Electric ZB5FW313 Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens

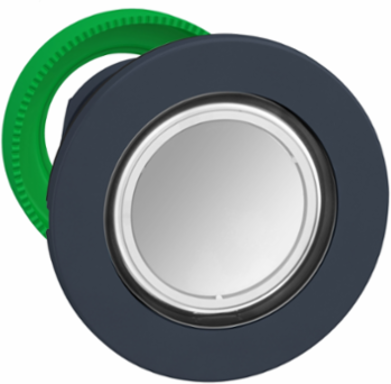

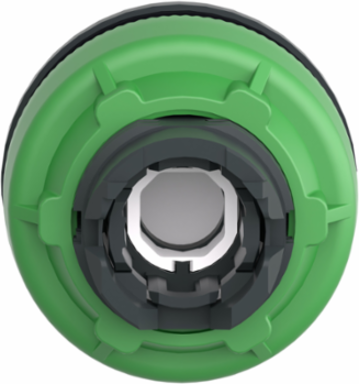

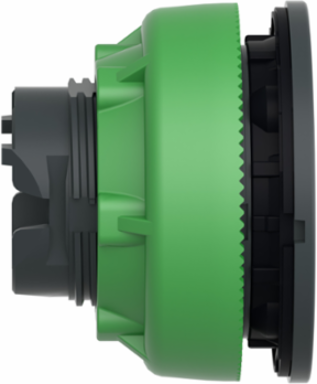

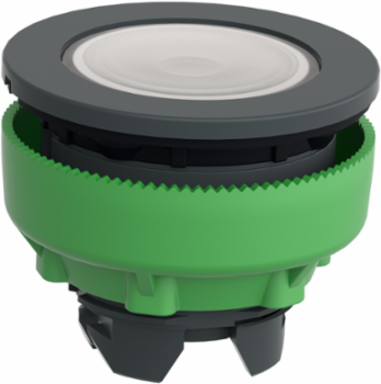

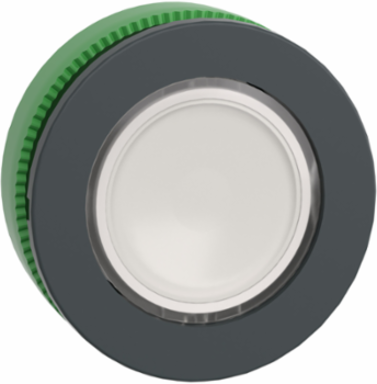

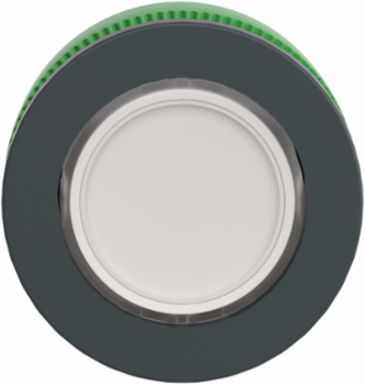

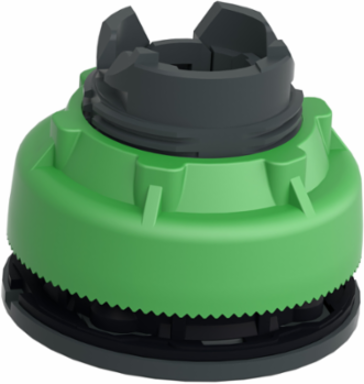

Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens
Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens
Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens
Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens
Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens
Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens
Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens
Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens
Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens
Head for illuminated push button, Harmony XB5, white, 30mm, universal LED, plain lens
  • MPN: ZB5FW313
  • PPN: SCH-ZB5FW313

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$29.14/ EA

Description

This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.

Specifications

Physical Attributes

Cap Operator Or Lens Color
white
Cad Overall Height
37 mm
Cad Overall Depth30 mm
Cad Overall Width37 mm

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Bezel Material
dark grey plastic, dark grey plastic
Electrical Composition Code
M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED
Operator Profile
white flush, unmarked
Protective Treatment
TC
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Cap Operator Or Lens Color
white
Carbon Footprint Of The End Of Life Phase C1 To C4
0 kg CO2 eq., 0.0201374415
Carbon Footprint Of The Manufacturing Phase A1 To A3
0.1 kg CO2 eq., 0.1380269006
Operator Profile 1 Cap Operator Or Lens Color
white
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2404014EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1930
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Average Percentage Of Recycled Metal Content
29 %
Compatibility Code
ZB5
Gcr Bridge
ZB5FWCUST03
Head Type
built-in-flush
Main Group
illum push-button
Mechanical Durability
10000000 cycles
Overvoltage Category
class II conforming to IEC 60536
Range Of Product
Harmony XB5
Returnability
Yes
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
0.2 kg CO2 eq.
Warranty In Months
18
Pep Code
ENVPEP1710010_V2
Pep Verification Date
2022-11-01
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Installation [A5]
Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Energy Model - End Of Life [C1-c4]
Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Pn
1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable1, no
Mounting Diameter30.5 mm
Product Or Component Typehead for illuminated push-button
Shape Of Signaling Unit Headround
Type Of Operatorspring return
Carbon Footprint Of The Distribution Phase A40.0030076199, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0001709263, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content16 %
Device Short NameZB5
Group Of Productflush push integral LED
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Markingunmarked
Operator Additional Informationwith plain lens
Product AvailabilityStock - Normally stocked in distribution facility
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Sustainable PackagingYes
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
X C Productflush push integral LED
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionPushbutton is used to push the transmission mechanism to make the moving contact and the static contact press on or off and realize circuit switching. An illuminated pushbutton switch uses a small LED to emphasise the “ON” position over 10 years of product lifetime with 70% use rate.& 10& 10Product Standards:& 10UL 508& 10EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-1& 10JIS C8201-5-1; JIS C8201-1
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Espagnac (France)
Energy Model - Use [B6]Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Offer Owner Code190786

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Ip Degree Of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Product Compatibility
universal LED
Recycled Metal Content At Cr Level
29 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
0.1613428883
Environmental Disclosure
ENVPEP1710010_V2
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2022-11-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1710010_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
head for illuminated push-button
Range Of ProductHarmony XB5

ETIM

ETIM 8
EC000221
ETIM 9EC000221

Specifications

Country of Origin
Brazil, France
