Harmony XB6 Illuminated Push Button Head, 16mm, Spring Return, IP65
Schneider Electric

Schneider Electric ZB6DW1 Harmony XB6 Illuminated Push Button Head, 16mm, Spring Return, IP65

  • MPN: ZB6DW1
  • PPN: SCH-ZB6DW1

CAD

$18.52

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

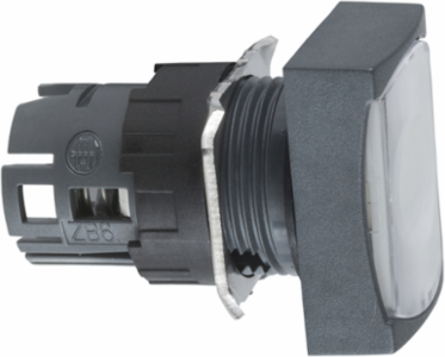

This Harmony ZB6DW1 is a white rectangular flush illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Spain, France, Mexico

Physical Attributes

Cad Overall Depth
33 mm
Cad Overall Width
24 mm
Cad Overall Height18 mm

Important Information Attributes

Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate Agency
GOST, CSA, CCC, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0 kg CO2 eq., 0.0163288917
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
0.2 kg CO2 eq., 0.2010541719
Local Data Status
Publishable
Return Indicator
Y
Future Msrp
9.20
Stock Policy
2
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2403025EN
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Product Kit Identifier
N
Compatibility Code
ZB6
Electrical Shock Protection Class
class II conforming to IEC 61140
Operator Profile
white flush, unmarked
Product Or Component Type
head for illuminated push-button
Range Of Product
Harmony XB6
Sale Per Indivisible Quantity
1
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
0.2 kg CO2 eq.
Pep Code
ENVPEP2403025EN
Pep Verification Date
2023-10-01
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Nbr. Of Units In Pkg.
1
Take-back
No
Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase [A4]0.0011768929, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0010146575, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Future Imap7.11
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayYes
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bezel Materialplastic
Device Short NameZB6
Mounting Diameter16 mm
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Shape Of Signaling Unit Headrectangular
Sustainable PackagingNo
Type Of Operatorspring return
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential, In %17
Package Weight(Lbs)15.000 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Nema Degree Of Protection
NEMA 4X CSA C22.2 No 94, NEMA 13 CSA C22.2 No 94NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 4 CSA C22.2 No 94
Reach Free Shvc
Yes
China Rohs Regulation
X
Mercury Free
Yes
Circularity Profile
ENVEOLI2403025EN
Eu Rohs Directive
Compliant
Packaging Made With Recycled Cardboard
Yes
Product Compatibility
integral LED
Pep Code
ENVPEP2403025EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.2195746139
Environmental DisclosureENVPEP2403025EN
Ip Degree Of ProtectionIP65 IEC 60529
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
head for illuminated push-button
Range Of ProductHarmony XB6

ETIM

ETIM 8
EC000221
ETIM 9EC000221

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
