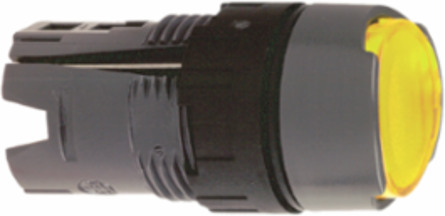

Schneider Electric ZB6AW5 Harmony XB6 Illuminated Push Button Head, 16mm, Spring Return, 12-24V
- MPN: ZB6AW5
- PPN: SCH-ZB6AW5
CAD
$18.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony ZB6AW5 is a yellow flush illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Features
- Designed for a standard 16mm diameter cutout, this Harmony ZB6 yellow illuminated pushbutton head is engineered specifically for high-density operator interfaces where panel real estate is at a premium. Its compact circular footprint allows industrial designers to pack more functionality into smaller enclosures without compromising ergonomic accessibility or user control.
- Featuring a vibrant, translucent yellow cap, this actuator provides immediate visual feedback when paired with an LED or incandescent bulb. The high-contrast color is ideal for signaling "Caution" or "Standby" states, ensuring that plant personnel can monitor system status from a distance and react instantly to process changes, which significantly improves operational efficiency and safety.
- Built to withstand the harshest industrial environments, this pushbutton head carries IP65, NEMA 4, and NEMA 13 ratings for superior resistance against dust, water jets, and oil seepage. This durable construction prevents internal contact contamination and premature failure, reducing maintenance costs and ensuring consistent performance in food processing, chemical plants, or heavy manufacturing settings.
- Equipped with a precision-engineered spring-return (momentary) action, this actuator provides crisp, consistent tactile feedback that lets the operator know the command has been registered. The modular design allows for rapid "snap-fit" assembly onto ZB6 contact blocks and light modules, streamlining initial installation and making field replacements quick and effortless for maintenance technicians.
Documentation & Downloads
Specifications
Additional
- Voltage
- 12-24 V
- Vibration Resistance
- +/- 3 mm 2-500 Hz IEC 60068-2-6, 5 gn 2-500 Hz IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40 to 70 °C
- Overall Dimensions
- 18 mm height x 18 mm width x 33 mm depth
- Shape
- Round
- Material
- Plastic bezel
- Series
- Harmony XB6
- Product Compatibility
- Integral LED
- IP Degree of Protection
- IP65 IEC 60529
- Standards
- JIS C 852, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-5, JIS C8201-1
- Mercury Free
- Yes
- RoHS Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Protective Treatment
- TC
- Environmental Disclosure
- ENVPEP1710010EN
Shock Resistance30 gn 18 ms half sine wave IEC 60068-2-27, 50 gn 11 ms half sine wave IEC 60068-2-27
Ambient Air Temperature For Operation-25 to 70 °C
Mounting Diameter16 mm
Net Weight0.016 kg
Operator TypeSpring Return
Product TypeHead for illuminated push-button
Device Short NameZB6
Electrical Shock Protection ClassClass II IEC 61140
NEMA Degree of ProtectionNEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94, NEMA 13 CSA C22.2 No 94
Product CertificationsCCC, UL, CSA, GOST
Reach RegulationFree of SVHC above threshold
Reach Free Of SVHCYes
China RoHS RegulationX
Sustainable Offer StatusGreen Premium product
Country of OriginSpain
