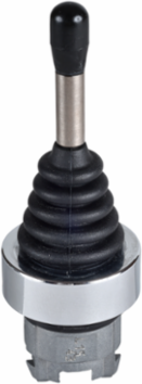

Schneider Electric ZD4PA14 Harmony XB4 Joystick Controller Head, 22mm, 4 Directions, IP66
- MPN: ZD4PA14
- PPN: SCH-ZD4PA14
CAD
$217.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4 head for joystick controller operates with 4 direction stay-put mechanism. It has a chromium-plated metal bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- chromium plated metal, chromium plated metal
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0028768675094401576, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.010391758331965194, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2302014EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- ZB4
- Electrical Shock Protection Class
- class I conforming to IEC 60536
- Mounting Diameter
- 22 mm
- Operator Position Information
- 5 positions
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.2 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Operator Pos Information
- 5 positions
- Pep Code
- ENVPEP2302014EN
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Package Weight(Lbs)
- 60.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable1, no
Certificate AgencyCSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.02992628468231817
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.13274766048267936
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameZB4
Mechanical Durability1000000 cycles
Operator Direction Information4 directions
Operator Profile54 mm long operating shaft
Product Or Component Typehead for joystick controller
Range Of ProductHarmony XB4
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingYes
Type Of Operatorstay put
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Type Of Operator 3 Type Of Operatorstay put
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis joystick controller operates with 2 direction spring return to zero position mechanism. It has 1 x NO contact and a plastic bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections with power consumption of 0.002W at active phase 7.2%. The product has a 10-year lifespan and adheres to IEC 60947-5-5 and 60947-5-1 standards.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- UL type 4X/13, NEMA 13, NEMA 4X
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2302014EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint0.1759425710064029
Environmental DisclosureENVPEP2302014EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2302014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for joystick controller
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000632
ETIM 9EC000632
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
Accessories
