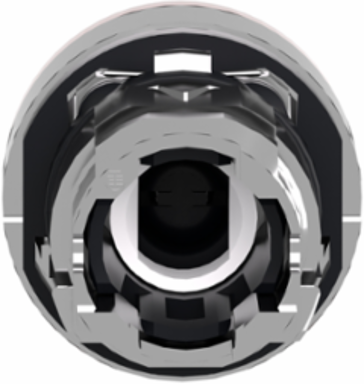

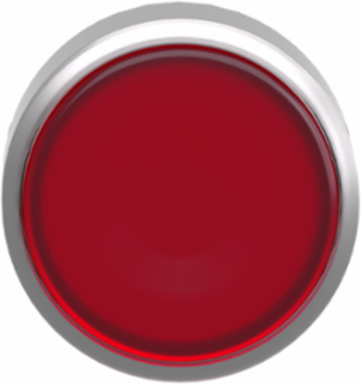

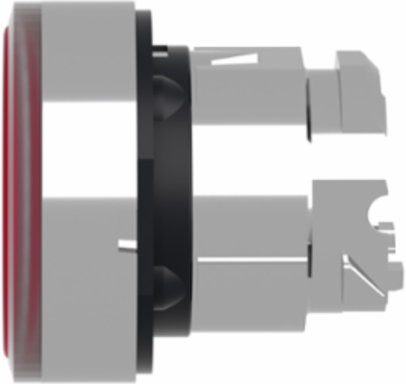

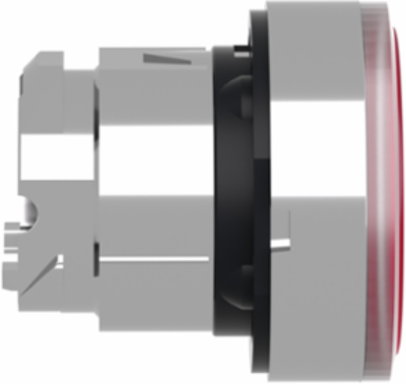

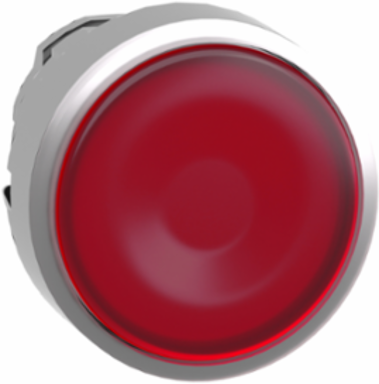

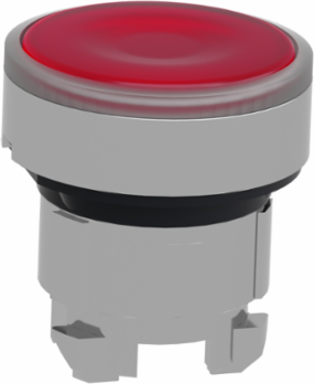

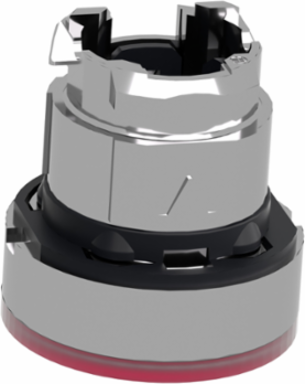

Schneider Electric ZB4BW343 Harmony XB4 Red Flush Illuminated Push Button Head, 22mm, IP66, Metal

MPN: ZB4BW343
PPN: SCH-ZB4BW343

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$13.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB4, plain lens illuminated flush red button head for universal LED operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Features

The Schneider ZB4BW343 is a 22mm flush-mounted, illuminated push-button head from the high-durability Harmony XB4 metal range. Featuring a red lens, this operator provides both physical machine control and clear visual status feedback, making it the industry standard for "Stop" functions or fault indicators in Canadian industrial control panels.
Unlike plastic alternatives, the XB4 series is manufactured with a chromium-plated metal bezel. This provides superior mechanical durability and resistance to chemical cleaning agents, making it the "gold standard" for Canadian heavy manufacturing, mining, and oil and gas facilities where equipment must withstand significant physical abuse.
This head is designed for an integral LED configuration. It is engineered to be paired with a Schneider ZB4BZ009 mounting collar and a ZBV Light Block. The red LED provides high-visibility status indication even in bright sunlight or dimly lit factory floors, ensuring operators can identify critical machine states at a glance.
The ZB4BW343 carries IP66, IP67, IP69, and IP69K ratings, along with NEMA 4, 4X, and 13 protection. This ensures the internal electronics remain completely dry and functional even when subjected to high-pressure, high-temperature steam cleaning or extreme Canadian weather conditions.
This is a "head-only" component, allowing you to customize the electrical logic to your specific needs. You can snap on various ZBE contact blocks (typically a Normally Closed block for "Stop" functions) to the mounting collar. This modularity reduces inventory costs and simplifies future maintenance or logic upgrades.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Mexico, United States

Physical Attributes

Cad Overall Depth	30 mm
Cad Overall Width	29 mm

Cad Overall Height	29 mm
Cap Operator Or Lens Color	red

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Bezel Material	chromium plated metal, chromium plated metal
Electrical Composition Code	M1 6 single front mounting integral LEDM2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED
Certificate Agency	CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0433155945, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.1956766082
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	37 %
Device Short Name	ZB4
Group Of Product	flush push integral LED
Important Message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Marking	unmarked
Mounting Diameter	22.5 mm
Operator Profile	red flush, unmarked
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	Yes
Type Of Operator	spring return
Cap Operator Or Lens Color	red
Pep Code	ENVPEP1808008EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	75
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	no, 1
X C Product	flush push integral LED
Carbon Footprint Of The Distribution Phase [A4]	0.0041589864, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0038224561
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Applicability	Component
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1808008EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	21 %
Compatibility Code	ZB4
Gcr Bridge	ZB4BWCUST04
Head Type	standard
Main Group	illum push-button
Mechanical Durability	10000000 cycles
Operator Additional Information	with plain lens
Overvoltage Category	class I conforming to IEC 60536
Product Or Component Type	head for illuminated push-button
Range Of Product	Harmony XB4
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Operator Add Information	with plain lens
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Cap/Operator Or Lens Colour	red
Package Weight(Lbs)	27.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP67, IP69, IP69K
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI1808008EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level	21 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.2469736452
Environmental Disclosure	ENVPEP1808008EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	universal LED
Pep Code	ENVPEP1808008EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
