Schneider Electric

Schneider Electric ZB6CGC Head for key selector switch, Harmony XB6, square Ø 16 2 position stay put 200

Head for key selector switch, Harmony XB6, square Ø 16 2 position stay put 200
  • MPN: ZB6CGC
  • PPN: SCH-ZB6CGC

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$58.09/ EA

    Description

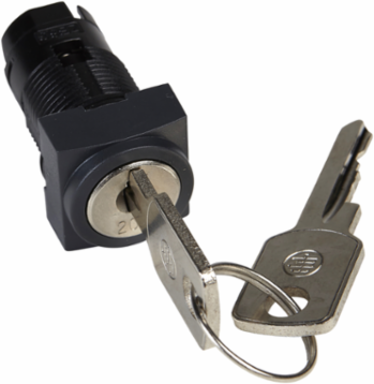

    This Harmony ZB6CGC is a square selector switch head, 2-position stay put, key operated Ronis 200. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

    Specifications

    Environment

    Product Certifications
    GOST || UL || CCC || CSA
    Ambient Air Temperature For Storage
    -40-70 °C
    Nema Degree Of Protection
    NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Protective Treatment
    TC
    Ambient Air Temperature For Operation-25-70 °C
    StandardsCSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
    Electrical Shock Protection Classclass II IEC 61140
    Vibration Resistance+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
    Ip Degree Of ProtectionIP65 IEC 60529

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1710010EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileENVEOLI1710010EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Complementary

    Cad Overall Width
    18 mm
    Cad Overall Height
    18 mm
    Cad Overall Depth55 mm

    Specifications

    Key Withdrawal Position
    in any position
    Range Of Product
    Harmony XB6
    Operator Profile
    black key switch
    Mounting Diameter
    16 mm
    Product Or Component Type
    head for key selector switch
    Device Short Name
    ZB6
    Sale Per Indivisible Quantity1
    Bezel Materialplastic
    Operator Position Information2 positions
    Type Of Operatorstay put
    Shape Of Signaling Unit Headsquare
    Type Of Keylockkey 200
