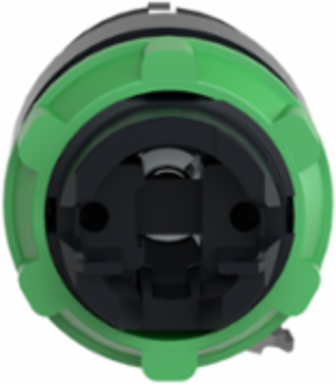

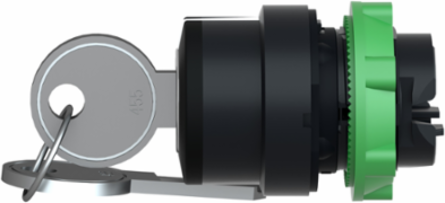

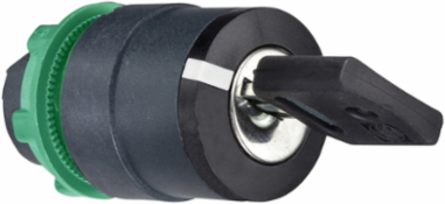

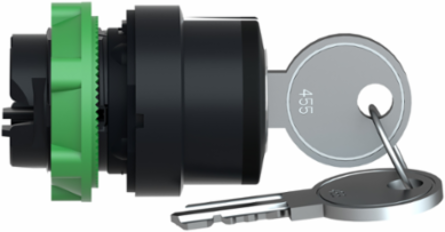

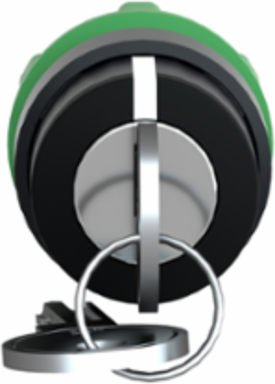

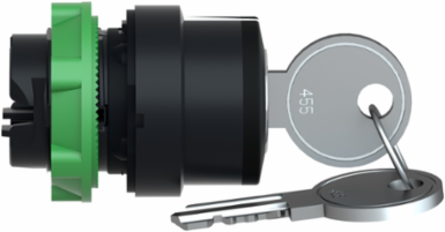

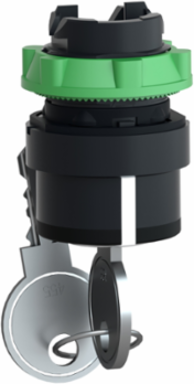

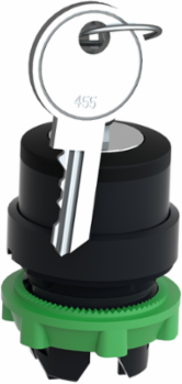

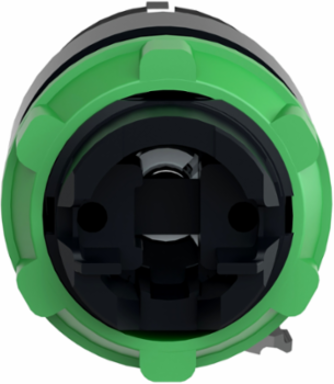

Schneider Electric ZB5AG3 Harmony XB5 Key Selector Switch Head, 22mm, 3 Positions, IP66
- MPN: ZB5AG3
- PPN: SCH-ZB5AG3
CAD
$94.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5, head with key (key no.455) for key selector switch has 3 positions, operates with stay-put mechanism with key withdrawal on left and right position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Key removal allowed in only one of the positions, allowing for advanced interlocking between various parts of a machine or process, while limiting human errors.
Features
- Featuring a three-position stay-put configuration, this operator mechanically locks into your chosen position Left, Center, or Right until turned by an operator. This definitive mechanical retention is ideal for selector applications like "Hand-Off-Auto" or "Manual-Off-Automatic" control loops, ensuring high-voltage machinery remains safely in its designated mode without accidental drift.
- Engineered as a key-operated switch using standard Ronis 455 lock cylinders, this unit allows key extraction exclusively in the center ("Off") position. This design provides robust physical access security for facility managers, guaranteeing that critical or dangerous production processes cannot be restarted or switched into manual mode without a designated supervisor's key on hand.
- Designed with a standard front-mounting collar, this operator snaps securely onto standard Schneider Electric ZB5AZ mounting bases and ZBE contact blocks. This modular architecture allows industrial panel builders to customize contact configurations (NO/NC) in seconds, drastically accelerating panel fabrication and simplifying field replacements without disturbing back-of-panel wiring.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico, United States
Physical Attributes

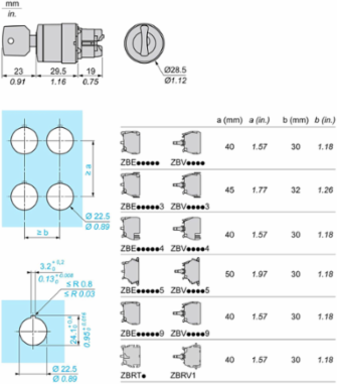

- Cad Overall Depth
- 72 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Key Withdrawal Position
- center, center
- Station Name
- XALD 1...5 cut-outs, XALK 2...5 cut-outs
- Certificate Agency
- DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0773453245
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.3878434584
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 57.55
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
- Head Type
- standard
- Mechanical Durability
- 1000000 cycles
- Operator Position Information
- 3 positions +/- 45°
- Overvoltage Category
- class II conforming to IEC 60536
- Product Or Component Type
- head for key selector switch
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Type Of Keylock
- key 455
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2308009EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Cap/Operator Or Lens Colour
- black
- Package Weight(Lbs)
- 68 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C3 6 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Pos Information3 positions +/- 45°
Carbon Footprint Of The Distribution Phase [A4]0.0074538462, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0087875492, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Future Imap44.45
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeZB5
Group Of Productkey switch
Main Groupselector switch
Mounting Diameter22 mm
Operator Profileblack key switch
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
Type Of Operatorstay put
Type Of Operator 3 Type Of Operatorstay put
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.004 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.4814301783
- Environmental Disclosure
- ENVPEP2308009EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308009EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308009EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for key selector switch
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
