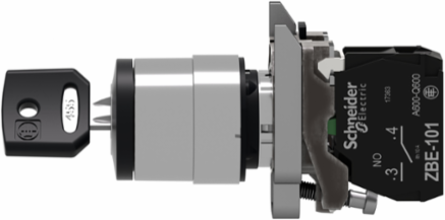

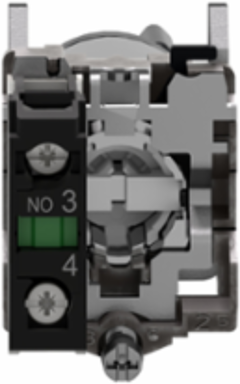

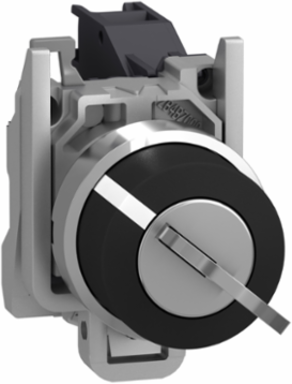

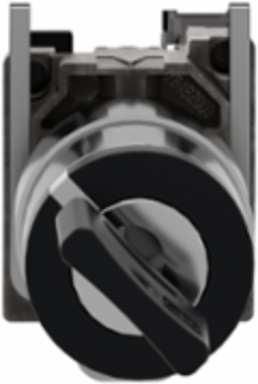

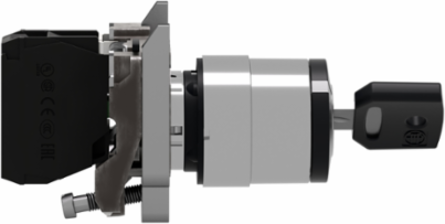

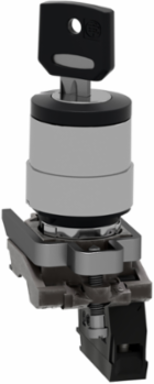

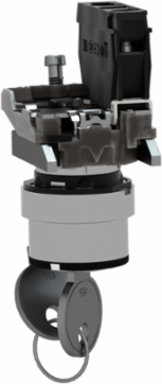

Schneider Electric XB4BG41 Harmony XB4 Key Selector Switch, 22 mm, Black, 2 Positions, 1 NO

  • MPN: XB4BG41
  • PPN: SCH-XB4BG41
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $118.23

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XB4 modular black key selector switch (key no.455) has 2 positions, operates with a stay-put mechanism with key withdrawal on the left position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Mexico, United States
    Depth86 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Customizable
    no, 0
    Electrical Reliability
    λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Shape Of Screw Head
    cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    [Ie] Rated Operational Current
    3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Carbon Footprint Of The Distribution Phase [A4]
    0.018262, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.017557
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    0.1 kg CO2 eq., 0.05696100000000001
    Local Publishable Date
    2026-03-26
    Stocking Flag
    Y
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2308006EN
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Compatibility Code
    XB4
    Contacts Material
    silver alloy (Ag/Ni)
    Contacts Usage
    standard contacts
    Fixing Collar Material
    zamak
    Mechanical Durability
    1000000 cycles
    Operator Position Information
    2 positions 90°
    Overvoltage Category
    class I conforming to IEC 60536
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Repair Index
    A
    Range Of Product
    Harmony XB4
    Returnability
    Yes
    Shape Of Signaling Unit Head
    round
    Software Version
    v5.9.4
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint
    1 kg CO2 eq.
    Type Of Operator
    stay put
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Keylock Type
    key 455
    Pep Code
    ENVPEP2308006EN
    Pep Verification Date
    2024-06-09
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    47 mm
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Cap/Operator Or Lens Colour
    black
    Short-circuit Protection
    10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)
    151.000 g
    Take-back
    No
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
    0.9151
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
    24.076
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
    132.31
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    2.1267
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    0.4114
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    0.3316
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
    24.077
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    0.1714
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    0.3316
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    15.422
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -8.1376
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
    Key Withdrawal Positionin any position, in any position
    Certificate AgencyBV, UL, CSA, DNV, LROS (Lloyds register of shipping)
    Terminals Description Iso N°1(13-14)NO, (13-14)NO
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.34485, 0.3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.91861
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayYes
    Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Bezel Materialchromium plated metal
    Contact Operationslow-break
    Contacts Type And Composition1 NO
    Device Short NameXB4
    Head Typestandard
    Mounting Diameter22.5 mm
    Operator Profileblack key switch
    Positive Openingwithout
    Product Or Component Typeselector switch
    Protective TreatmentTH
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity1
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingNo
    Torque Value0.14 N.m NO changing electrical state
    Type Of Keylockkey 455
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Contacts Composition1 NO
    Type Of Operator 3 Type Of Operatorstay put
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionKey selector switch has 2 positions which operates with a stay-put mechanism with key withdrawal on the left position and it has metal bezel. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. Product has power consumption of 0.002 W with use rate of 72% for a period of 10 years and adhering to international standard IEC 60947-5-1.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %88
    Width Nominal30 mm
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    [Us] Rated Supply Voltage600 V
    Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Nbr. Of Units In Pkg.1
    Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
    Warranty (In Months)18
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]15.754
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-8.1376
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-17.159
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-6.5575
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle0.3316
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]15.925
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-8.2632
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-0.1256
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]0.3316
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]24.076
    Customs Code8536509025

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP69, IP69K, IP67
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    1.3562400000000001
    Environmental Disclosure
    ENVPEP2308006EN
    Packaging Made With Recycled Cardboard
    No
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2024-06-09
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2308006EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2308006EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    selector switch
    Range Of ProductHarmony XB4

    ETIM

    ETIM 8
    EC001029
    ETIM 9EC001029

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
