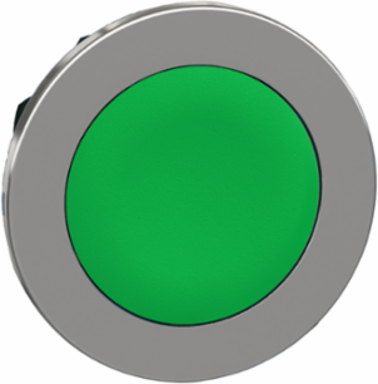

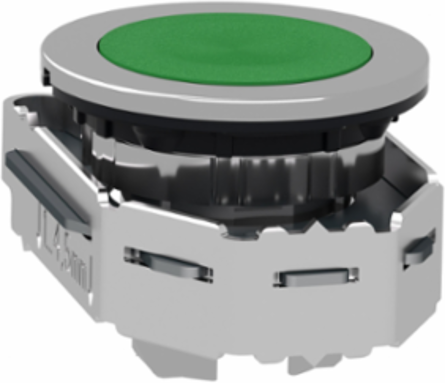

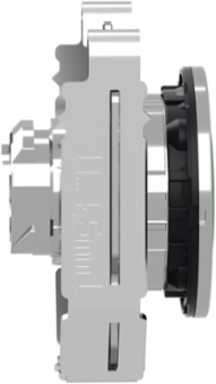

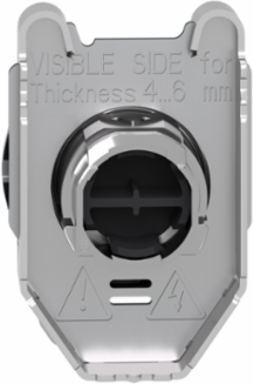

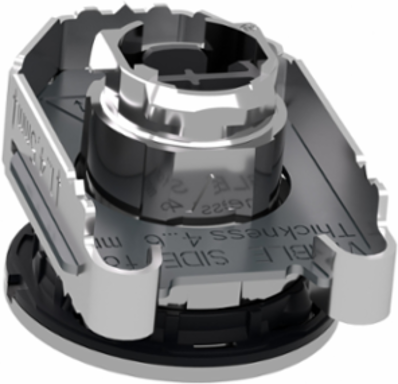

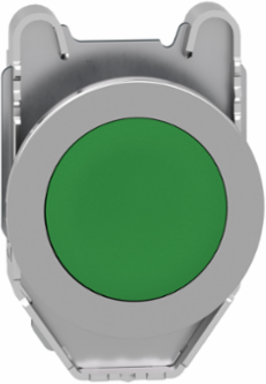

Schneider Electric ZB4FH03 Harmony XB4 30.5 mm Green Push Button Head, IP69K, 500,000 Cycles

  • MPN: ZB4FH03
  • PPN: SCH-ZB4FH03
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $57.62

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil

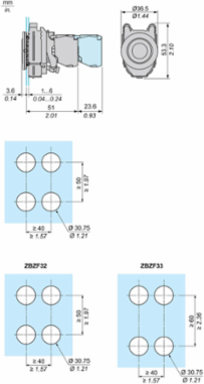

    Physical Attributes

    Cad Overall Depth
    31 mm
    Cad Overall Width
    36.6 mm
    Cad Overall Height36.6 mm

    Important Information Attributes

    Customizable
    1, no
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    Carbon Footprint Of The Distribution Phase [A4]
    0.0075847212, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0116330249, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    kg CO2 eq., 0
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Weee Scope
    Out
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Product Kit Identifier
    N
    Average Percentage Of Recycled Plastic Content
    14 %
    Compatibility Code
    ZB4
    Gcr Bridge
    ZB4FHCUST04
    Head Type
    built-in-flush
    Marking
    unmarked
    Mounting Diameter
    30.5 mm
    Overvoltage Category
    class I conforming to IEC 60536
    Product Or Component Type
    head for non-illuminated push-button
    Range Of Product
    Harmony XB4
    Sale Per Indivisible Quantity
    1
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    0.5 kg CO2 eq.
    Vibration Resistance
    5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8538908180
    Electrical Composition CodeC11 3 single front mountingC15 1 single front mounting, C9 3 single front mounting
    Certificate AgencyUL Listed, CSA, CCC, EAC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0733634638
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.4111051008
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2308035EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Average Percentage Of Recycled Metal Content21 %
    Bezel Materialchromium plated metal
    Device Short NameZB4F
    Group Of Productflush push-push non illum
    Main Grouppush-button
    Mechanical Durability500000 cycles
    Operator Profilegreen flush, unmarked
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Protective TreatmentTH
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Sustainable PackagingYes
    Type Of Operatorpush-push
    Pep CodeENVPEP2308035_V1-EN
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Cap/Operator Or Lens Colourgreen
    Package Weight(Lbs)60.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
    Recycled Metal Content At Cr Level
    21 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.5036863108
    Environmental Disclosure
    ENVPEP2308035_V1-EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2308035EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2308035_V1-EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    head for non-illuminated push-button
    Range Of ProductHarmony XB4

    ETIM

    ETIM 8
    EC000221
    ETIM 9EC000221

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    basic element
