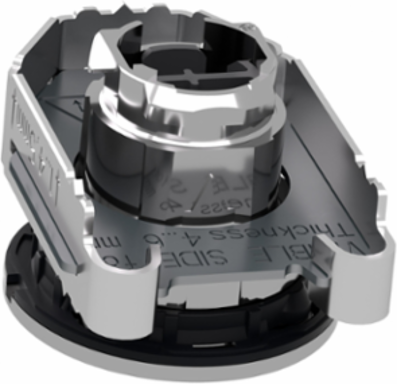

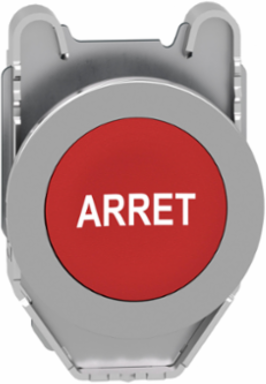

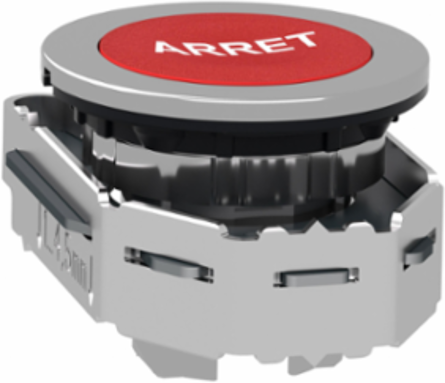

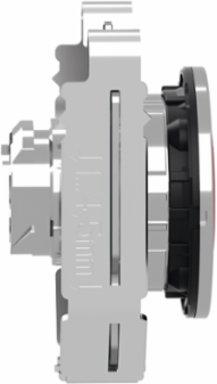

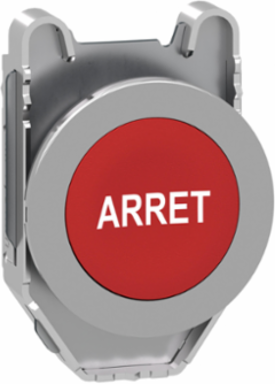

Schneider Electric ZB4FA433 Harmony XB4 30.5mm Non-Illuminated Push Button Head, Red ARRET Marking
- MPN: ZB4FA433
- PPN: SCH-ZB4FA433
CAD
$19.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes
- Cap Operator Or Lens Color
- red
- Cad Overall Height
- 36.6 mm
- Color Of Marking
- white
Cad Overall Depth31 mm
Cad Overall Width36.6 mm
Important Information Attributes
- Customizable
- 0, no
- Cap Operator Or Lens Color
- red
- Certificate Agency
- UL Listed, CSA, CCC, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0733634638
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.4111051008
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308035EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Average Percentage Of Recycled Metal Content
- 21 %
- Bezel Material
- chromium plated metal
- Device Short Name
- ZB4F
- Group Of Product
- flush push with marking
- Main Group
- push-button
- Mechanical Durability
- 10000000 cycles
- Operator Profile
- red flush, ARRET white)
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Type Of Operator
- spring return
- Color Of Marking
- white
- Type Of Operator 3 Type Of Operator
- spring return
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
X C Productflush push with marking
Carbon Footprint Of The Distribution Phase [A4]0.0075847212, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0116330249, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content14 %
Compatibility CodeZB4
Electrical Composition CodeC1 9 single front mountingC2 9 single and double front mountingC11 3 single front mountingC15 1 single front mounting
Head Typebuilt-in-flush
MarkingARRET
Mounting Diameter30.5 mm
Overvoltage Categoryclass I conforming to IEC 60536
Product Or Component Typehead for non-illuminated push-button
Range Of ProductHarmony XB4
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
X C MarkingARRET
Pep CodeENVPEP2308035_V1-EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Cap/Operator Or Lens Colourred
Package Weight(Lbs)58.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- Recycled Metal Content At Cr Level
- 21 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.5036863108
- Environmental Disclosure
- ENVPEP2308035_V1-EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308035EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2308035_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for non-illuminated push-button
Range Of ProductHarmony XB4
