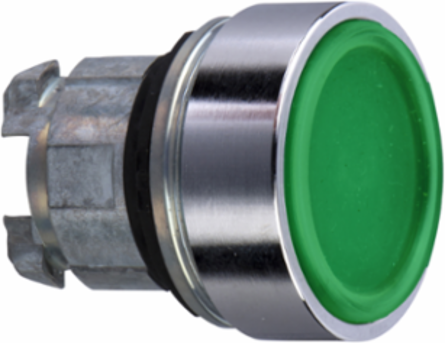

Schneider Electric ZB4BA34 Harmony XB4 Green Flush Pushbutton 22 mm Spring Return, IP66
- MPN: ZB4BA34
- PPN: SCH-ZB4BA34
CAD
$43.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB4, flush green button head with high bezel operates with a spring return / impulse mechanism. This button head provides a robust and ergonomic interface for controlling your machines thanks to its high bezel flush head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly and is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Sale Per Indivisible Quantity
- 1
- Range Of Product
- Harmony XB4
- Operator Profile
- green flush, unmarked
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Head Type
- standard
Operator Additional Informationhigh guard
Bezel Materialchromium plated metal
Mounting Diameter22 mm
Product Or Component Typehead for non-illuminated push-button
Device Short NameZB4
Complementary
- Mechanical Durability
- 10000000 cycles
- Cad Overall Width
- 29 mm
- Cad Overall Height
- 29 mm
Electrical Composition CodeC1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Cad Overall Depth31 mm
Device Presentationbasic element
Environment
- Product Certifications
- CSA || BV || GL || LROS (Lloyds register of shipping) || DNV || UL listed
- Ambient Air Temperature For Operation
- -40-70 °C
- Overvoltage Category
- class I IEC 60536
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
Ik Degree Of ProtectionIK06 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
StandardsJIS C8201-5-1 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
