Schneider Electric ZB5AP38 Harmony XB5 Green Flush Pushbutton 22 mm Spring Return IP66
- MPN: ZB5AP38
- PPN: SCH-ZB5AP38
CAD
$45.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

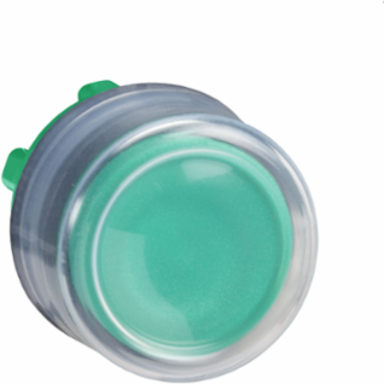

This green flush button head with clear membrane silicone boot provides an ergonomic interface for controlling your machine. It provides also a simple solution to prevent dirt and other contaminants. It is used for insertion of protected legend within head and is easily installed on compatible complete push button units. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes

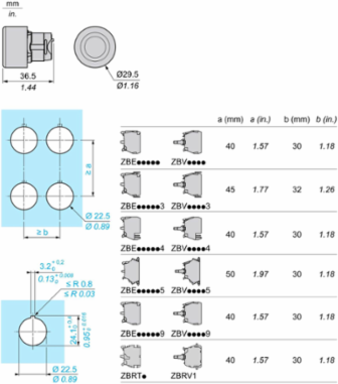

- Cad Overall Depth
- 37 mm
- Cad Overall Width
- 30 mm
Cad Overall Height30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- dark grey plastic, dark grey plastic
- Electrical Composition Code
- C3 6 single front mountingC4 6 single and double front mountingC14 2 single front mounting, SF2 2 single front mountingSR2 2 single rear mounting
- Certificate Agency
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.02558262857344531
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.10490129814227978
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2303008EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 29 %
- Compatibility Code
- ZB5
- Group Of Product
- silicone boot push
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Marking
- unmarked
- Mounting Diameter
- 22 mm
- Operator Profile
- green flush, unmarked
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Station Name
- XALD 1...5 cut-outsXALK 2...5 cut-outs
- Total Lifecycle Carbon Footprint
- 0.1 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2303008_V2
- Pep Verification Date
- 2024-03-24
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; APAC
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; APAC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable1, no
Operator Profile 1 Cap Operator Or Lens Colorgreen
Carbon Footprint Of The Distribution Phase [A4]0.004942172722261331, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0037316896179218607, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content6 %
Device Short NameZB5
Head Typestandard
Main Grouppush-button
Mechanical Durability10000000 cycles
Operator Additional Informationclear boot for insertion of protected legend within head
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typehead for non-illuminated push-button
Range Of ProductHarmony XB5
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Sustainable PackagingNo
Type Of Operatorspring return
Operator Add Informationclear boot for insertion of protected legend within head
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC
Cap/Operator Or Lens Colourgreen
Package Weight(Lbs)22.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.13915778905590828
- Environmental Disclosure
- ENVPEP2303008_V2
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- not compatible with legend holder
- Pep Code
- ENVPEP2303008_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level29 %
Mercury FreeYes
Circularity ProfileENVEOLI2303008EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-03-24
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for non-illuminated push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
