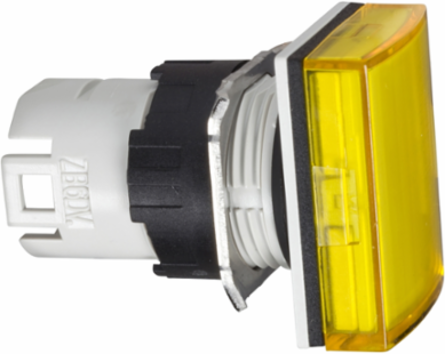

Schneider Electric ZB6DV5 Harmony XB6 Rectangular Yellow Pilot Light Head 16mm with Integral LED

  • MPN: ZB6DV5
  • PPN: SCH-ZB6DV5
  • UNSPSC: 39121534
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $10.66

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony ZB6DV5 is a rectangular yellow pilot light head for integral LED. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginSpain
    Weight8 g

    Physical Attributes

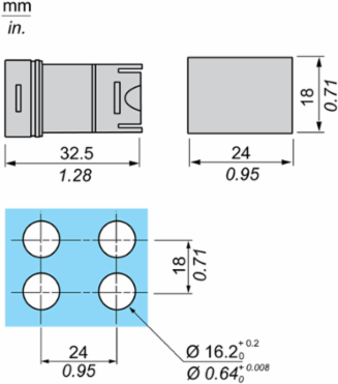

    Cad Overall Depth33 mm
    Cad Overall Width24 mm
    Cad Overall Height18 mm

    Important Information Attributes

    Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Carbon Footprint Of The Distribution Phase A40.001046129, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0010812097, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Weee ScopeOut
    Eoli Availability DisplayYes
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Bezel Materialplastic
    Device Short NameZB6
    Mounting Diameter16 mm
    Product Or Component Typehead for pilot light
    Range Of ProductHarmony XB6
    Sale Per Indivisible Quantity1
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingNo
    Database Version2022-01
    Cap/Operator Or Lens Colouryellow
    Customs Code8531909001
    Functional Unit DescriptionHarmony XB6 complete pilot light is part of the range diameter 16mm plastic.It has a circular head shape and is supplied with an integral LED and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness.
    Functional Unit UnitUnit
    Recyclability Potential In %14
    Certificate AgencyCCC, GOST, UL, CSA
    Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.01265
    Carbon Footprint Of The Manufacturing Phase A1 To A30.2 kg CO2 eq., 0.2394919355
    Local Data StatusPublishable
    Return IndicatorY
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2312044EN
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Compatibility CodeZB6
    Electrical Shock Protection Classclass II conforming to IEC 61140
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTC
    ReturnabilityYes
    Shape Of Signaling Unit Headrectangular
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
    Data Sourceextrapolated product
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10

    Environment Attributes Main

    Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
    Nema Degree Of ProtectionNEMA 4 CSA C22.2 No 94NEMA 4X CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2312044EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Product Compatibilityintegral LED
    Pep CodeENVPEP2312044EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.2542692742
    Environmental DisclosureENVPEP2312044EN
    Ip Degree Of ProtectionIP65 IEC 60529
    Packaging Without Single Use PlasticNo
    Reach Free Of SvhcYes
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29
