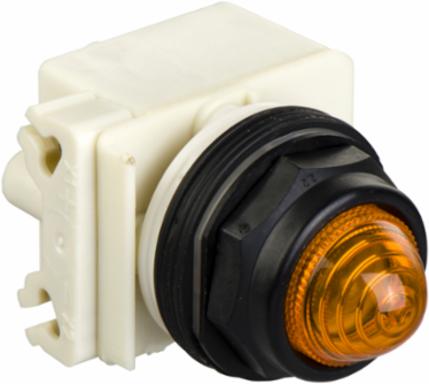

Schneider Electric 9001SKP38LYA9 Harmony 30mm Amber Pilot Light, LED Yellow, IP66, 120V
- MPN: 9001SKP38LYA9
- UPC: 785901425151
- PPN: SCH-9001SKP38LYA9
CAD
$196.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001SK, amber pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Product Or Component Type
- pilot light
- Device Short Name
- 9001SK
Light Block Supplydirect 120 V AC/DC
Lens Typedomed plastic
Complementary
- [Us] Rated Supply Voltage
- 120 V
- Lens Material
- polycarbonate
- Mounting Diameter
- 30 mm
- Short-Circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Cap/Operator Or Lens Colour
- amber
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Cad Overall Height
- 70 mm
- Lens Type
- domed
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- Light Source Colour
- yellow
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Cad Overall Depth
- 42 mm
- Bulb Base
- BA 9s
[Us] Rated Supply Voltage120 V AC/DC
Light SourceLED
[Ith] Conventional Free Air Thermal Current10 A
Shape Of Signaling Unit Headround
Net Weight0.082 kg
Size30 mm
Device Presentationcomplete product
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Bezel Materialplastic
Operating Positionany position
Cad Overall Width54 mm
Shape Of Screw Headcross slotted
Environment
- Product Certifications
- UL 508 || NEMA
- Standards
- CSA C22.2 No 14 || JIS C 852 || JIS C8201-5-1 || IEC 60947-5-1 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710019EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710019EN
