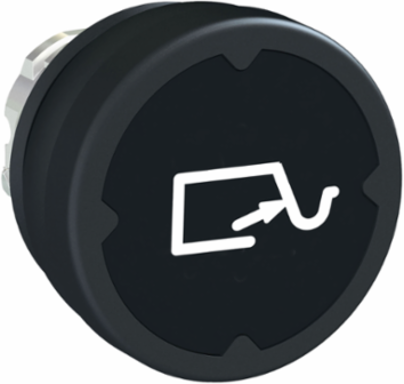

Schneider Electric ZB4BC28014 Harmony XB4 Push Button Head, 22 mm, IP66, Black, Type H014
- MPN: ZB4BC28014
- PPN: SCH-ZB4BC28014
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Designed to excel in demanding environments, the Harmony XB4 Push Button Head from Schneider Electric features a robust 22 mm design that ensures reliable operation even in tough conditions. With an impressive IP66 rating, this push button head is engineered to be resistant to dust and water, making it ideal for use in various industrial applications. The sleek black finish adds a level of sophistication while serving its functional purpose in automation and control systems. This component is a valuable addition to any setup that requires durable pilot devices built to withstand the rigors of harsh environments.
Documentation & Downloads
Specifications
Additional
- Product Type
- Head for push-button
- Vibration Resistance
- 5 gn (2-500 Hz) IEC 60068-2-6
- Electrical Shock Protection Class
- Class I IEC 61140
- Head Type
- Standard
- Operator Profile
- Black flush, type H014
- Shape of Signaling Unit Head
- Round
- CAD Overall Height
- 18.5 mm (0.73 in)
- Net Weight
- 0.036 kg (0.08 lb)
- Cap/Operator or Lens Colour
- Black
- Colour of Marking
- White
- NEMA Degree of Protection
- NEMA 4 UL 508, NEMA 12, NEMA 13
- Resistance to High Pressure Washer
- 90 Pa (0.01 psi), 82.5 °C (180 °F)
- Product Certifications
- UL, CE, CSA
- Ambient Air Temperature for Storage
- -40 to 85 °C (-40 to 185 °F)
- Group of Product
- Flush marked type H014
- Country of Origin
- France
- Sustainable Offer Status
- Green Premium product
- RoHS Exemption Information
- Yes
- Reach Regulation
- Free of substances of very high concern above threshold
- Toxic Heavy Metal Free
- Yes
- Warranty
- 18 months
Mechanical Durability10000000 cycles
Shock Resistance30 gn (18 ms) half sine wave IEC 60068-2-27
Mounting Diameter22 mm (0.87 in)
Operator TypeSpring return
Operator Additional InformationVertical mounting
CAD Overall Width37 mm (1.46 in)
CAD Overall Depth37 mm (1.46 in)
Bezel MaterialChromium plated metal
Marking TypeType H014
IP Degree of ProtectionIP66, IP67, IP69, IP69K IEC 60529
IK Degree of ProtectionIK06 IEC 62262
StandardsIEC 60947-1, IEC 60947-5-1, CSA C22.2, UL 508
Ambient Air Temperature for Operation-40 to 70 °C (-40 to 158 °F)
Main GroupHarsh environment
Electrical Composition CodesC1, C2, C11, C15
Environmental DisclosureENVPEP1808008EN
EU RoHS DirectivePro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Circularity ProfileENVEOLI1808008EN
China RoHS RegulationX
