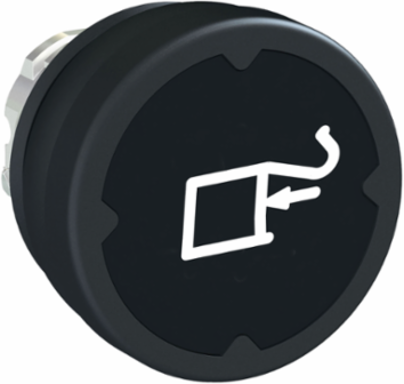

Schneider Electric ZB4BC28040 Harmony XB4 Push Button Head, 22 mm, IP66/IP69K, Black
- MPN: ZB4BC28040
- PPN: SCH-ZB4BC28040
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for durability in demanding settings, this push button head from Schneider Electric is a standout choice for automation and control applications. Designed with a diameter of 22 mm, it ensures compatibility with various pilot devices while providing an exceptional level of protection with its IP66/IP69K rating. The robust black finish not only enhances its aesthetic appeal but also contributes to its resilience against harsh environmental conditions, making it ideal for use in industries where reliability is paramount. Whether you are looking to upgrade your control systems or implement new pilot devices, this push button head adeptly meets the challenges of your operational needs.
Documentation & Downloads
Specifications
Additional
- IP Degree of Protection
- IP66, IP67, IP69, IP69K IEC 60529
- Shock Resistance
- 30 gn 18 ms half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature for Operation
- -40 to 70 B0C
- Vibration Resistance
- 5 gn 2-500 Hz IEC 60068-2-6
- Electrical Composition Code
- C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting
- Type of Operator
- Spring return
- Product or Component Type
- Head for push-button
- Head Type
- Standard
- Shape of Signaling Unit Head
- Round
- Color of Marking
- White
- Main Group
- Harsh environment
- Toxic Heavy Metal Free
- Yes
- Standards
- UL 508, IEC 60947-1, IEC 60947-5-1, CSA C22.2
- Reach Free of SVHC
- Yes
- China RoHS Regulation
- X
- IK Degree of Protection
- IK06 IEC 62262
- Country of Origin
- France
NEMA Degree of ProtectionNEMA 4 UL 508, NEMA 12, NEMA 13
Mechanical Durability10,000,000 cycles
Ambient Air Temperature for Storage-40 to 85 B0C
Electrical Shock Protection ClassClass I IEC 61140
Mounting Diameter22 mm (0.87 in)
Net Weight0.036 kg (0.08 lb)
Bezel MaterialChromium plated metal
Cap/Operator ColorBlack
Marking TypeH040
Group of ProductFlush marked type H040
Operator Additional InformationVertical mounting
Mercury FreeYes
Product CertificationsCE, CSA, UL, RoHS
Reach RegulationFree of Substances of Very High Concern above threshold
RoHS Exemption InformationYes
Resistance to High Pressure Washer90 Pa, 82.5 B0C
Range of ProductHarmony XB4
