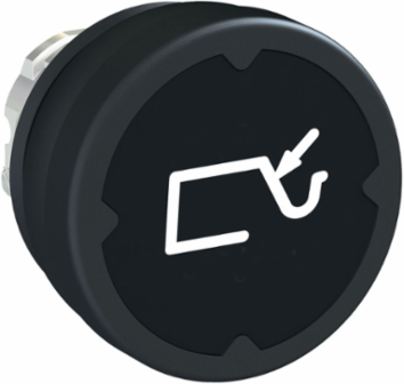

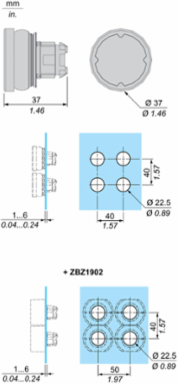

Schneider Electric ZB4BC28010 Harmony XB4 Push Button Head, 22 mm, Black, Type H010
- MPN: ZB4BC28010
- PPN: SCH-ZB4BC28010
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Harmony XB4 push button head by Schneider Electric is an essential component designed for seamless operation in industrial automation contexts. With a robust 22 mm diameter and an eye-catching black finish, this push button head excels in demanding environments, ensuring reliable performance and accessibility. Engineered for durability, it stands out within the category of pilot devices for harsh applications, making it a dependable choice for control systems where resilience and functional integrity are paramount. Whether it's for machinery or control panels, this push button head is built to meet the rigorous demands of professionals in the field.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Cap Operator Or Lens Color
- black
- Cad Overall Height
- 18.5 mm
- Color Of Marking
- white
Cad Overall Depth37 mm
Cad Overall Width37 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Operator Add Information
- vertical mounting
- Carbon Footprint Of The Distribution Phase [A4]
- 0.004707758, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0072204982, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308035EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- chromium plated metal
- Device Short Name
- ZB4
- Electrical Shock Protection Class
- class I conforming to IEC 61140
- Head Type
- standard
- Marking
- type H010
- Mounting Diameter
- 22.5 mm
- Operator Profile
- black flush, type H010 white)
- Product Or Component Type
- head for push-button
- Resistance To High Pressure Washer
- 90 Pa 82.5 °C
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Packaging
- No
- Type Of Operator
- spring return
- Color Of Marking
- white
- Pep Code
- ENVPEP2308035EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Cap/Operator Or Lens Colour
- black
- Package Weight(Lbs)
- 32.000 g
- Warranty (In Months)
- 18
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Cap Operator Or Lens Colorblack
Certificate AgencyCSA, UL, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0455359431
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2551686833
Local Data StatusPublishable
Return IndicatorY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeZB4
Electrical Composition CodeC1 9 single front mountingC2 9 single and double front mountingC11 3 single front mountingC15 1 single front mounting
Group Of Productflush marked type H010
Main Groupharsh environment
Mechanical Durability10000000 cycles
Operator Additional Informationvertical mounting
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony XB4
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
X C Markingtype H010
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Take-backNo
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-0.1236
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP69K, IP67, IP69
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.3126328826
- Environmental Disclosure
- ENVPEP2308035EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2308035EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Nema Degree Of ProtectionUL type 4/13NEMA 4 UL 508, NEMA 13, NEMA 12
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308035EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
