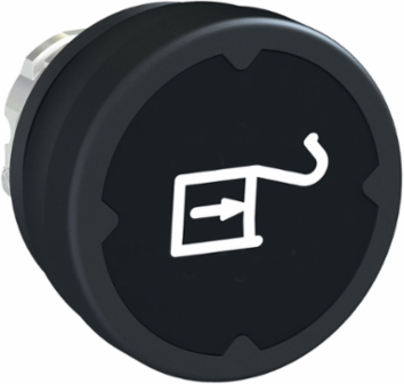

Schneider Electric ZB4BC28015 Harmony XB4 Push Button Head, 22 mm, IK06, NEMA 4, Black
- MPN: ZB4BC28015
- PPN: SCH-ZB4BC28015
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for durability in demanding environments, the Harmony XB4 push button head by Schneider Electric features a robust 22 mm design that adheres to NEMA 4 standards for protection against moisture and dust. With an IK06 rating, this push button head is capable of withstanding impacts, making it ideal for industrial applications where reliability is crucial. Its sleek black finish not only provides a professional look but also ensures seamless integration into a variety of control panels. Whether you're upgrading an existing system or implementing new automation solutions, this push button head is a reliable choice for efficient operation in harsh conditions.
Documentation & Downloads
Specifications
Additional
- Mechanical Durability
- 10000000 cycles
- Shock Resistance
- 30 gn 18 ms half sine wave IEC 60068-2-27
- IP Degree of Protection
- IP66, IP67, IP69, IP69K IEC 60529
- Resistance to High Pressure Washer
- 90 Pa at 82.5 °C
- Ambient Air Temperature for Storage
- -40 to 85 °C
- CAD Overall Width
- 37 mm (1.46 in)
- CAD Overall Depth
- 37 mm (1.46 in)
- Head Type
- Standard
- Shape of Signaling Unit Head
- Round
- Product Certifications
- CSA, UL, CE
- IK Degree of Protection
- IK06 IEC 62262
- Group of Product
- Flush marked type H015
- Electrical Composition Code
- C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting
- Marking
- Type H015
- Reach Free Of Svhc
- Yes
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- China Rohs Regulation
- X
- Net Weight
- 0.036 kg
- Country of Origin
- France
- Product or Component Type
- Head for push-button
Vibration Resistance5 gn 2-500 Hz IEC 60068-2-6
Electrical Shock Protection ClassClass I IEC 61140
NEMA Degree of ProtectionNEMA 4, NEMA 12, NEMA 13 UL 508
Ambient Air Temperature for Operation-40 to 70 °C
Mounting Diameter22 mm (0.87 in)
CAD Overall Height18.5 mm (0.73 in)
Bezel MaterialChromium plated metal
Type of OperatorSpring return
Color of MarkingWhite
StandardsUL 508, IEC 60947-1, IEC 60947-5-1, CSA C22.2
Operator Additional InformationVertical mounting
Main GroupHarsh environment
Device Short NameZB4
Operator ProfileBlack flush, type H015 white
Eu Rohs DirectivePro-active compliance (out of EU RoHS legal scope)
Toxic Heavy Metal FreeYes
Environmental DisclosureENVPEP1808008EN
Circularity ProfileENVEOLI1808008EN
Reach RegulationFree of Substances of Very High Concern above threshold
ColorBlack
Range of ProductHarmony XB4
