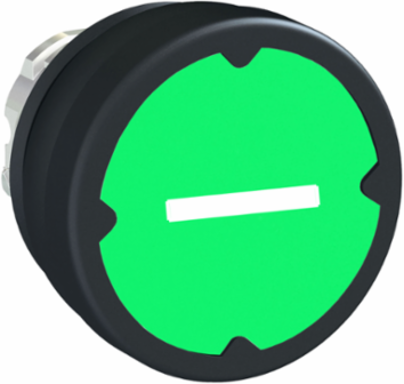

Schneider Electric ZB4BC38023RA Harmony XB4 Green Push Button Head, 22 mm, NEMA 4, 3,000,000 Cycles
- MPN: ZB4BC38023RA
- PPN: SCH-ZB4BC38023RA
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for durability and reliability, the ZB4BC38023RA Harmony XB4 green push button head from Schneider Electric is specifically designed for use in challenging environments. This robust 22 mm component boasts a NEMA 4 rating, ensuring it withstands harsh conditions while providing a responsive control solution. With an impressive lifecycle of 3,000,000 cycles, it exemplifies Schneider Electric's commitment to quality, making it an excellent choice for industrial automation and control applications where dependability is critical. Whether integrating into existing systems or designing new solutions, this push button head is a vital component for effective operational management.
Documentation & Downloads
Specifications
Additional
- Mechanical Durability
- 3,000,000 cycles
- Shock Resistance
- 30 gn (18 ms) half sine wave IEC 60068-2-27
- NEMA Degree of Protection
- NEMA 4, NEMA 12, NEMA 13 UL 508
- Ambient Air Temperature for Operation
- -40 to 70 °C (-40 to 158 °F)
- Resistance to High Pressure Washer
- 90 Pa (0.01 psi) at 82.5 °C (180 °F)
- Cad Overall Width
- 37 mm
- Cad Overall Depth
- 37 mm
- Product Or Component Type
- head for push-button
- Operator Additional Information
- horizontal mounting
- Shape of Signaling Unit Head
- round
- Marking
- type H023
- Operator Profile
- green flush, type H023 white
- Standards
- CSA C22.2, UL 508, IEC 60947-5-1, IEC 60947-1
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
Vibration Resistance5 gn (2-500 Hz) IEC 60068-2-6
IP Degree of ProtectionIP66, IP69, IP69K IEC 60529
Electrical Shock Protection ClassClass I IEC 61140
Ambient Air Temperature for Storage-40 to 85 °C (-40 to 185 °F)
Mounting Diameter22 mm (0.87 in)
Cad Overall Height18.5 mm
Net Weight0.036 kg
Operator Typespring return
Head Typestandard
Bezel Materialchromium plated metal
Marking Colorwhite
Product CertificationsUL, CE, CSA, IEC 60947-5-1, IEC 60947-1
Range of ProductHarmony XB4
Circularity ProfileENVEOLI1808008EN
Reach Free of SVHCYes
Reach RegulationFree of Substances of Very High Concern above threshold
Country of OriginFrance
