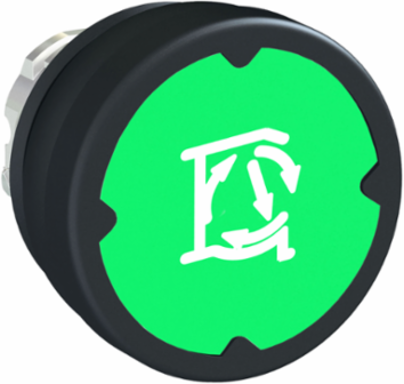

Harmony XB4 Push Button Head, Green, NEMA 4, 22 mm, 10000000 Cycles
Schneider Electric

Schneider Electric ZB4BC38011 Harmony XB4 Push Button Head, Green, NEMA 4, 22 mm, 10000000 Cycles

  • MPN: ZB4BC38011
  • PPN: SCH-ZB4BC38011

CAD

$100.46

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Engineered for resilience and functionality, the green push button head from Schneider Electric’s Harmony XB4 series is designed to thrive in challenging environments. With a robust NEMA 4 rating, this 22 mm button offers effective protection against dust and water, making it ideal for industrial applications where reliability is paramount. Capable of withstanding up to 10 million cycles, it ensures long-lasting performance and minimal maintenance, meeting the rigorous demands of automation and control systems. Whether used in manufacturing or heavy-duty machinery, this push button head combines durability and efficiency, ensuring smooth operation in any setting.

Documentation & Downloads

Specifications

Additional

Mechanical Durability
10000000 cycles
Vibration Resistance
5 gn 2-500 Hz IEC 60068-2-6
Dimensions (Width x Height x Depth)
37 mm x 18.5 mm x 37 mm (1.46 in x 0.73 in x 1.46 in)
Type of Operator
spring return
Marking
type H011, white
NEMA Degree of Protection
NEMA 4 UL 508, 12, 13
IK Degree of Protection
IK06 IEC 62262
Product Certifications
UL, CSA, CE
Compliance
REACH SVHC Free, RoHS Compliant, Mercury Free, Toxic Heavy Metal Free
Shock Resistance30 gn 18 ms half sine wave IEC 60068-2-27
Mounting Diameter22 mm (0.87 in)
Net Weight0.036 kg (0.08 lb)
Operator Profilegreen flush, type H011 white
Bezel Materialchromium plated metal
IP Degree of ProtectionIP66, IP67, IP69, IP69K
StandardsIEC 60947-5-1, UL 508, CSA C22.2, IEC 60947-1
Electrical Shock Protection ClassClass I IEC 61140
Country of OriginFrance
