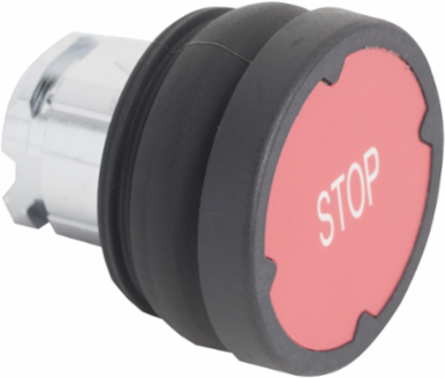

Schneider Electric ZB4BC48007 Harmony XB4 Red Push Button Head for Harsh Environment, 22 mm, IP66
- MPN: ZB4BC48007
- PPN: SCH-ZB4BC48007
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Harmony XB4 Red Push Button Head from Schneider Electric is engineered to perform reliably in harsh environments, making it an essential component for automation and control applications. With a robust design and an IP66 rating, this 22 mm push button head is built to withstand challenging conditions, ensuring durability and consistent operation. Its bright red color not only enhances visibility but also signals emergency or critical functions—a vital feature for safety in industrial settings. Perfectly suited for use with compatible pilot devices, this push button head embodies both functionality and resilience, meeting the demanding needs of modern industry.
Documentation & Downloads
Specifications
Additional
- Mechanical Durability
- 10,000,000 cycles
- Vibration Resistance
- 5 gn 2-500 Hz IEC 60068-2-6

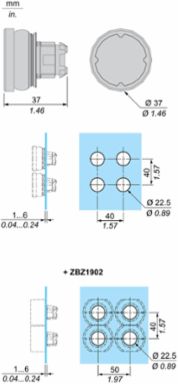

- Dimensions (W x H x D)
- 37 mm x 18.5 mm x 37 mm (1.46 in x 0.73 in x 1.46 in)
- Head Type
- standard
- Operator Profile
- red flush, type H007 white
- Bezel Material
- chromium plated metal
- Electrical Shock Protection Class
- Class I IEC 61140
- NEMA Degree of Protection
- NEMA 4 UL 508, 4X, 12, 13
- Resistance to High Pressure Washer
- 90 Pa (0.01 psi) at 82.5 °C (180 °F)
- Product Certifications
- CSA, CE, UL
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
Shock Resistance30 gn 18 ms half sine wave acceleration IEC 60068-2-27
Mounting Diameter22 mm (0.87 in)
Weight0.036 kg (0.08 lb)
Operator Typespring return
Head Shaperound
Electrical Composition CodesC1, C2, C11, C15 (single and double front mounting)
IP Degree of ProtectionIP66, IP67, IP69, IP69K IEC 60529
IK Degree of ProtectionIK06 conforming to IEC 62262
StandardsIEC 60947-5-1, IEC 60947-1, UL 508, CSA C22.2
Toxic Heavy Metal FreeYes
RoHS ComplianceRoHS Compliant, REACH Compliant, Pro-active compliance (Product out of EU RoHS legal scope)
Country of OriginFrance
