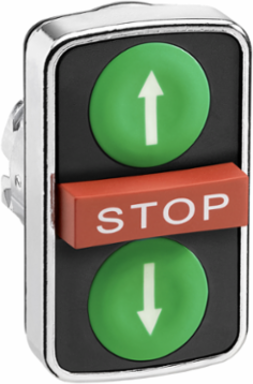

Schneider Electric ZB4BA73134 Harmony XB4 Triple Head Pushbutton Ø22 mm, IP66/IP69K, 3 Functions
- MPN: ZB4BA73134
- PPN: SCH-ZB4BA73134
CAD
$73.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB4, triple head has 1 red and 2 green buttons, operates with a spring return / impulse mechanism. It is marked with "up arrow", "STOP" and "down arrow" symbols. This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Type Of Operator
- spring return
- Product Or Component Type
- head for triple-headed push-button
- Device Short Name
- ZB4
- Head Type
- standard
Range Of ProductHarmony XB4
Mounting Diameter22 mm
Operators Descriptiongreen ''up arrow'' - green ''down arrow'' - red ''STOP''
Shape Of Signaling Unit Headrectangular
Operator Profile2 flush - 1 central projecting STOP push-buttons
Complementary
- Operator Profile
- red projecting, STOP white) || green flush, down arrow white) || green flush, up arrow white)
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting
- Net Weight
- 0.056 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
Mechanical Durability1000000 cycles
Colour Of Markingwhite marking when green, red or black caps || black marking when white caps
Device Presentationbasic element
Environment
- Product Certifications
- LROS (Lloyds register of shipping) || DNV || CSA || UL listed || BV || GL
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-1
- Electrical Shock Protection Class
- class I IEC 60536
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Ik Degree Of ProtectionIK06 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP69 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
