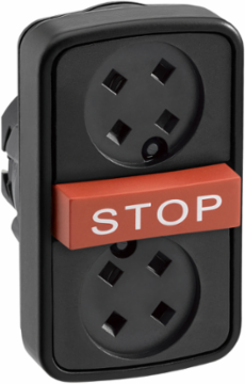

Schneider Electric ZB5AA791 Harmony XB5 Triple Head Push Button, 22mm, IP67/IP69K, 1 Red Projecting
- MPN: ZB5AA791
- PPN: SCH-ZB5AA791
CAD
$54.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This 3-function head provides 1 red button interface and 2 buttons without cap to your machines. It is easily installed into a standard 22mm diameter cut-out. It is also easily assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- spring return
- Product Or Component Type
- head for triple-headed push-button
- Operator Profile
- 2 flush - 1 central projecting STOP push-buttons
- Bezel Material
- dark grey plastic
Mounting Diameter22 mm
Operators Descriptionblack pushes without cap
Shape Of Signaling Unit Headrectangular
Head Typestandard
Device Short NameXB5
Complementary
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Net Weight
- 0.023 kg
- Device Presentation
- basic element
- Operator Profile
- without cap || red projecting
- Station Name
- XALD 1 cut-out
- Cad Overall Depth
- 35 mm
Colour Of Markingblack marking when white caps || white marking when green, red or black caps
Cad Overall Height50 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Mechanical Durability1000000 cycles
Cad Overall Width30 mm
Environment
- Product Certifications
- LROS (Lloyds register of shipping) || DNV || GL || UL listed || CSA || BV
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK05 conforming to IEC 50102
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
