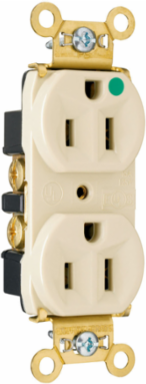

Pass & Seymour PS8200HLA Heavy-Duty Hospital-Grade Duplex Receptacle 15A 125V, Light Almond
- MPN: PS8200HLA
- UPC: 785007860122
- PPN: P-S-PS8200HLA
CAD
$43.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy-Duty Hospital-Grade Duplex Receptacle 15A 125V, Light Almond
Features
- Heavy-duty, brass strap for added strength and ground conductivity.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Two drive screws anchor strap to back body and face.
- Tri-drive brass terminal screws.
- Two back wire holes for more wiring flexibility.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Height
- 2.635 in
- Product Line
- Pass & Seymour
- Country of Origin
- Mexico
- Voltage
- 125.0 V
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 2.0
- Outlet Type
- Hospital Grade
- Application Sector
- Commercial
- Features
- Brass Mounting Strap
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Environmental Conditions
- Flammability: UL94 V2
ColorLight Almond
Width1.322 in
StandardUL498
Amperage15.0 A
StandardFEDSPEC
Indoor/OutdoorIndoor
Wall Plate IncludedNo
StandardCSA C22.2 No. 42
Number of PolesDouble Pole
Application SectorHealthcare
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
Dielectric StrengthWithstands 2000V minimum
Special FeaturesHeavy-duty, brass strap for added strength and ground conductivity. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around face to prevent strap from separating from face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Two drive screws anchor strap to back body and face. Tri-drive brass terminal screws. Internal screw-presure-plate back and side wire capability. Two back wire holes for more wiring flexibility. Auto-ground clip assures positive ground.
