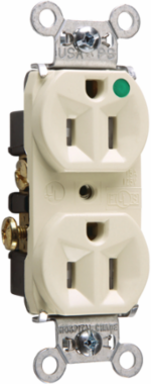

Pass & Seymour TR8200HLA Hospital-Grade Tamper-Resistant Duplex Receptacle 15A 125V Light Almond
- MPN: TR8200HLA
- UPC: 785007035162
- PPN: P-S-TR8200HLA
CAD
$21.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Hospital-Grade Tamper-Resistant Duplex Receptacle 15A 125V Light Almond
Features
- Impact-resistant nylon face.
- Stainless steel mounting screws also resist corrosion.
- Easily accessible break-off line contact connecting tab for split circuit wiring.
- Corrosion-resistant, zinc-plated steel strap is locked in.
- Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.
- High strength thermoplastic back body.
- Compact design for easy installation.
- Tri-drive terminal and mounting screws.
- Meets National Electrical Code Tamper-Resistant requirements.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Color
- Light Almond
- Width
- 1.322 in
- Amperage
- 15.0 A
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Is Tamper-Resistant
- Yes
- Outlet Type
- Hospital Grade
- Outlet Type
- Tamper-Resistant
- Application Sector
- Healthcare
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Wire Connection Type
- Internal Pressure Plates
Height2.635 in
Product LinePass & Seymour
Country of OriginMexico
Voltage125.0 V
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
FeaturesSingle Piece Plated Steel Mounting Strap
