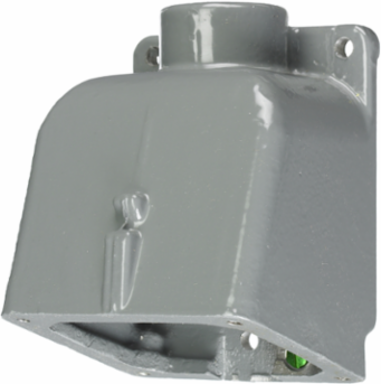

Hubbell Wiring Device-Kellems BB301W Industrial Grade Back Box for 20A & 30A 1" NPT Hub, 5.5 Inch
- MPN: BB301W
- UPC: 783585390451
- PPN: HBL-BB301W
- UNSPSC: 39121332
CAD
$166.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessory, Back Box, For 20A and 30A 1" NPT Hub, Angled, Mounting Screws Included, Gray Cast Aluminum
Features
- Industrial Grade
- Back Box
- For 20A and 30A 1" NPT Hub
- Standard Product
Specifications
Key Specifications
- General Literature Asset 2 Display Text
- Hubbell Marine Full Line Catalog
- Country of Origin
- China
- Industry Standard(s)
- UL Raintight and External Icing Test
- Performance
- Environmental - Moisture Resistance - IP54 Suitability
- Cable Entry
- Through Hub
- Height
- 5.5 in
- Number of Outlet
- Accepts 1-Device
- Special Features
- Standard Product
- Temperature Range
- Limited By Device
- Width
- 5.5 in
- General Literature Asset 1 Display Text
- Hubbell PRO Pin & Sleeve Brochure
- Number Of Outlets
- Accepts 1-Device
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A180
- Construction
- Cast
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 15.350 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585390450
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 3 Display TextIEC Pin & Sleeve Devices
Dimensions6.94 in x 5.5 in x 5.5 in
Length6.94 in
ApplicationMetallic
ColorGray
Knockouts1" NPT Hub
Size6.94 in x 5.5 in x 5.5 in
StandardUL Raintight and External Icing Test
TypeBack Box
Weight1.4 lb.
Display SizeFor 16, 20, 30 and 32 Amp Devices
StyleFor 20 And 30A Watertight Safety Shroud Receptacles And Inlets
Description - InvoicePS, IEC, ANG BOX, 20/30A, 1", ALU
Harmonization Code7616999999
MSDS FlagNo
Material - Mounting HardwareMounting Screws
MaterialAluminum
BOX SIZE8.100x24.700x11.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585390451
Case Weight14.101 lb.
Lowest Level UOMEach
Pallet Height40.500 in
Pallet Weight435.000 lb.
Certifications
- EU RoHS Indicator
- Yes
