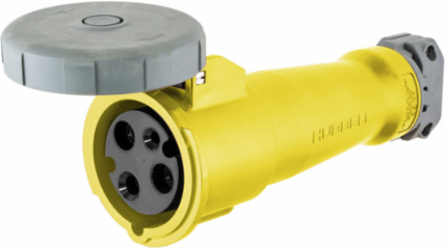

Hubbell Wiring Device-Kellems HBL3100C4W IEC Pin & Sleeve Female Connector Body 100A 125V AC Watertight
Hubbell Wiring Device-Kellems HBL3100C4W IEC Pin & Sleeve Female Connector Body 100A 125V AC Watertight
- MPN: HBL3100C4W
- UPC: 783585403038
- PPN: HBL-HBL3100C4W
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1224.75/ EA
Description
Heavy Duty IEC Pin and Sleeve Industrial Grade Female Connector Body, 100A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Watertight
Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
- Watertight
Specifications
Specifications
- Country of Origin
- PR
- Width
- 6.250 in
- Industry Standard(s)
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Amperage Rating
- 100 A
- Color
- Yellow
- Environmental Conditions
- Watertight
- NEMA Rating
- Non-NEMA
- Number of Poles
- 2-Pole
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Type
- Watertight Connector Body
- Voltage Rating Description
- 125 VAC
- Display Size
- Standard
- Number Of Conductors
- 3-Wire Grounding
- Number Of Wires
- 3-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 3100C4W
- Material - Mounting Hardware
- Cord Mounted
- Series
- HBL Heavy Duty
- BOX SIZE
- 12.875x16.745x14.495 (in)
- Carton - Number of Sub Packs
- 6
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585403038
- Each - Pack Description
- Each
Current / Amperage Rating100 A
Each - Width6.250 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Connections
Conductor Range#3 AWG to #1/0 AWG
InsulationInsulated Body
Number of Conductors3-Wire Grounding
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating125 VAC
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Poles2-Pole
StyleStandard Service
Description - InvoicePS, IEC, CONN, 2P3W, 100A 125V,4X/69K
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA12A180
Current Rating100 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack29.650 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
