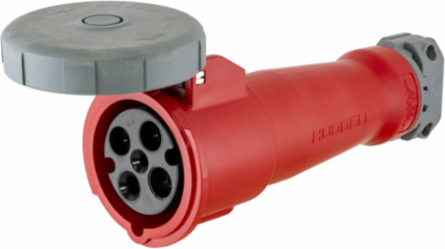

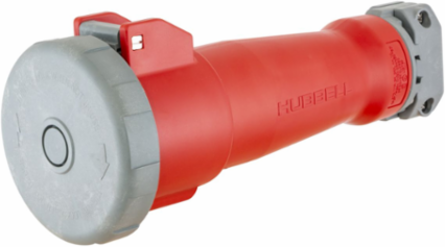

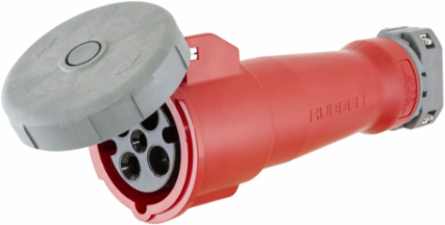

Hubbell Wiring Device-Kellems HBL4100C7W IEC Pin & Sleeve 100A 3-Phase 480V AC Female Connector Body
Hubbell Wiring Device-Kellems HBL4100C7W IEC Pin & Sleeve 100A 3-Phase 480V AC Female Connector Body
- MPN: HBL4100C7W
- UPC: 783585403991
- PPN: HBL-HBL4100C7W
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1396.37/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
- Watertight
Specifications
Specifications
- Country of Origin
- US
- Width
- 6.200 in
- Industry Standard(s)
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Amperage Rating
- 100 A
- Color
- Red
- Environmental Conditions
- Watertight
- NEMA Rating
- Non-NEMA
- Number of Poles
- 3-Pole
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Type
- Watertight Connector Body
- Voltage Rating Description
- 3 Phase 480 VAC
- Display Size
- Standard
- Number Of Conductors
- 4-Wire Grounding
- Number Of Wires
- 4-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 4100C7W
- Material - Mounting Hardware
- Cord Mounted
- Series
- HBL Heavy Duty
- BOX SIZE
- 13.100x16.600x14.600 (in)
- Carton - Number of Sub Packs
- 6
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585403991
- Case Weight
- 18.995 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 39.300 in
- Pallet Weight
- 631.050 lb.
Current / Amperage Rating100 A
Each - Width6.200 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Connections
Conductor Range#3 AWG to #1/0 AWG
InsulationInsulated Body
Number of Conductors4-Wire Grounding
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating3 Phase 480 VAC
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Poles3-Pole
StyleStandard Service
Description - InvoicePS, IEC, CONN, 3P4W, 100A 3P 480V, W/T
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA12A180
Current Rating100 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack30.400 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585403990
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
