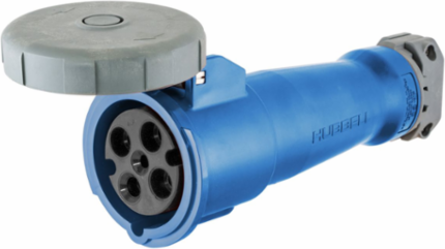

Hubbell Wiring Device-Kellems HBL420C9W IEC Female Connector Body, 20A 3-Phase 250V AC, Watertight
Hubbell Wiring Device-Kellems HBL420C9W IEC Female Connector Body, 20A 3-Phase 250V AC, Watertight
- MPN: HBL420C9W
- UPC: 783585404332
- PPN: HBL-HBL420C9W
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$438.91/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
Features
- Insulated Non-Metallic housing
- Color coded housings by voltage for easy identification
- Corrosion-resistant self-closing gasketed cover
- Watertight
Specifications
Specifications
- Country of Origin
- US
- Width
- 4.600 in
- Industry Standard(s)
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Amperage Rating
- 20 A
- Color
- Blue
- Environmental Conditions
- Watertight
- NEMA Rating
- Non-NEMA
- Number of Poles
- 3-Pole
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Type
- Watertight Connector Body
- Voltage Rating Description
- 3 Phase 250 VAC
- Display Size
- Standard
- Number Of Conductors
- 4-Wire Grounding
- Number Of Wires
- 4-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 420C9W
- Material - Mounting Hardware
- Cord Mounted
- Series
- HBL Heavy Duty
- BOX SIZE
- 9.900x22.500x9.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585404332
- Case Weight
- 13.012 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 40.000 in
- Pallet Weight
- 436.800 lb.
Current / Amperage Rating20 A
Each - Width4.600 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Connections
Conductor Range#14 AWG to #10 AWG
InsulationInsulated Body
Number of Conductors4-Wire Grounding
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating3 Phase 250 VAC
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Poles3-Pole
StyleStandard Service
Description - InvoicePS, IEC, CONN, 3P4W, 20A 3P 250V, W/T
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA12A180
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack13.900 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585404331
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
