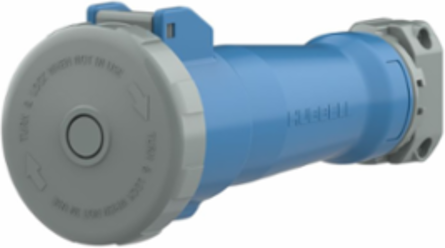

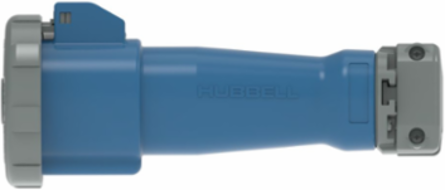

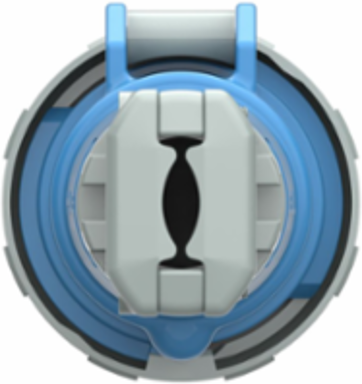

Hubbell Wiring Device-Kellems HBL460C9W Watertight IEC Female Connector Body, 60A 3-Phase, 250V AC, 3-Pole 4-Wire
Hubbell Wiring Device-Kellems HBL460C9W Watertight IEC Female Connector Body, 60A 3-Phase, 250V AC, 3-Pole 4-Wire
- MPN: HBL460C9W
- UPC: 783585404837
- PPN: HBL-HBL460C9W
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$1000.98/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Connector Body, 60A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
Features

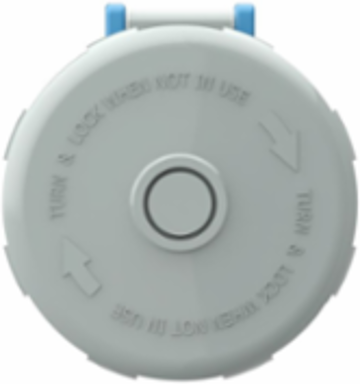

- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
- Watertight
Specifications
Specifications
- Country of Origin
- US
- Width
- 5.700 in
- Industry Standard(s)
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Amperage Rating
- 60 A
- Color
- Bleu
- Environmental Conditions
- Watertight
- NEMA Rating
- Non-NEMA
- Number of Poles
- 3-Pole
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Type
- Watertight Connector Body
- Voltage Rating Description
- 3 Phase 250 VAC
- Display Size
- Standard
- Number Of Conductors
- 4-Wire Grounding
- Number Of Wires
- 4-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 460C9W
- Material - Mounting Hardware
- Cord Mounted
- Series
- HBL Heavy Duty
- BOX SIZE
- 4.900x11.800x5.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585404837
- Case Weight
- 21.778 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 37.200 in
- Pallet Weight
- 534.600 lb.
Current / Amperage Rating60 A
Each - Width5.700 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Connections
Conductor Range#8 AWG to #2 AWG
InsulationInsulated Body
Number of Conductors4-Wire Grounding
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating3 Phase 250 VAC
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Poles3-Pole
StyleStandard Service
Description - InvoicePS, IEC, CONN, 3P4W, 60A 3P 250V, W/T
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA12A180
Current Rating60 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack29.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585404836
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
