Hubbell Wiring Device-Kellems

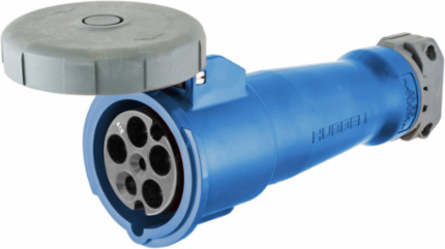

Hubbell Wiring Device-Kellems HBL560C9W Heavy Duty IEC Pin & Sleeve Connector, 60A 3-Phase Wye 120/208V AC, 4-Pole, Watertight

Heavy Duty IEC Pin & Sleeve Connector, 60A 3-Phase Wye 120/208V AC, 4-Pole, Watertight
  • MPN: HBL560C9W
  • UPC: 783585405674
  • PPN: HBL-HBL560C9W
  • UNSPSC: 39121421

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1043.75/ EA

Description

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 60A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight

Features

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight

Specifications

Amperage
60 A
Number of Poles
4-Pole
Number of Conductors
5-Wire Grounding
Connectivity
Pressure Terminal Screws
Width
5.6 in
Material - Mounting Hardware
Cord Mounted
NEMA Rating
Non-NEMA
Compliance
CSA Certified, UL Listed, UL Classified to IEC 60309-1, IEC 60309-2; Prop 65 Compliant
Country of Origin
US
Voltage3 Phase Y 120/208 VAC
Number of Wires5-Wire
Conductor Range#8 AWG to #2 AWG
Temperature RatingMax 75°C; Min -40°C w/o impact, -25°C with impact
TypeWatertight Connector Body
MaterialThermoplastic Polyester, Neoprene, Zytel® ST801 Nylon
ColorBlue
Flammability RatingUL 94 HB or better
