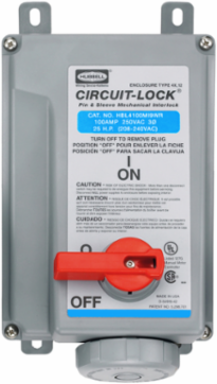

Hubbell Wiring Device-Kellems HBL4100MI9WR Heavy Duty IEC Pin & Sleeve Receptacle 100A 3-Phase 250V AC
- MPN: HBL4100MI9WR
- UPC: 783585012681
- PPN: HBL-HBL4100MI9WR
- UNSPSC: 39121406
CAD
$3402.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 100A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws
Features
- Captured neoprene gasket for a watertight seal
- DIN rail mounted switch for easy installation and replacement
- Solid pins for longer life and reliable electrical contact
- Watertight
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL4100MI9WR AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Motor Disconnects
- Country of Origin
- United States
- Width
- 10.900 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Application
- High Ampacity Watertight Connections
- Environmental Conditions
- Watertight
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Standard
- UL Listed
- Voltage Rating
- 3 Phase 240 VAC
- Wire Size
- #3 AWG to #1/0 AWG
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 4-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 4100MI9WR
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585012681
- Lowest Level UOM
- Each
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextIEC Pin & Sleeve Devices
Current / Amperage Rating100 A
Industry Standard(s)UL Listed
Amperage Rating100 A
ColorBlue
NEMA RatingNon-NEMA
Number of Wires4-Wire
Special FeaturesWatertight
TypeMechanical Interlock
Wattage25000
Voltage Rating Description3 Phase 240 VAC
Display SizeStandard Sized Product
Number Of Poles3-Pole
StyleReverse Service
Description - InvoicePS, IEC, MECHINT, 3P4W, 100A 3P 250V,REV
Harmonization Code8537109999
MSDS FlagNo
Sub Class CodeA12A210
Current Rating100 A
SeriesNon-Fused
BOX SIZE(in)
Each - Pack DescriptionEach
NAICS Code335931A104
Certifications
- EU RoHS Indicator
- No
