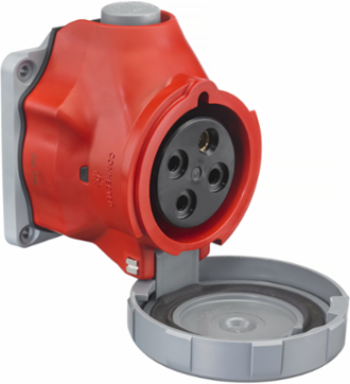

Hubbell Wiring Device-Kellems HBLS460R7W Heavy Duty IEC Pin and Sleeve Receptacle, 60A 3-Pole 4-Wire, IP69K, 3 Phase 480 VAC
- MPN: HBLS460R7W
- UPC: 783585478647
- PPN: HBL-HBLS460R7W
- UNSPSC: 39121406
CAD
$1296.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve, Receptacle, Switched, 60/63A 380-415V AC, 3-Pole 4-Wire Grounding, NEMA4X/IP69K, With Pilot Contact
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBLS460R7W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Food Processing Guide
- Country of Origin
- United States
- Width
- 6.500 in
- Color
- Red
- Number of Wires
- 4-Wire
- Voltage Rating
- 3 Phase 480 VAC
- Number Of Poles
- 3-Pole
- Style
- IP69k NEMA 4X
- Description - Invoice
- PS,IEC,SW RECP,3P4W,60A 3P 480V,4X/IP69k
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Series
- Advantage® Series
- BOX SIZE
- 8.000x19.900x12.200 (in)
- Carton - Number of Sub Packs
- 6
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585478647
- NAICS Code
- 335931A104
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextIEC Pin & Sleeve Devices
Current / Amperage Rating60 A
Amperage Rating60 A
Number of Poles3-Pole
TypeWatertight Receptacle
Voltage Rating Description3 Phase 480 VAC
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
Base Unit of MeasureEA
Carton - Gross Weight per Pack17.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
