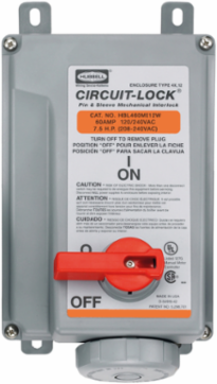

Hubbell Wiring Device-Kellems HBL460MI12WR Industrial Grade Female IEC Pin & Sleeve Receptacle 60A 125/250V 3-Pole 4-Wire
Hubbell Wiring Device-Kellems HBL460MI12WR Industrial Grade Female IEC Pin & Sleeve Receptacle 60A 125/250V 3-Pole 4-Wire
- MPN: HBL460MI12WR
- UPC: 783585012612
- PPN: HBL-HBL460MI12WR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2932.35/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws Orange
Features
- Captured neoprene gasket for a watertight seal
- DIN rail mounted switch for easy installation and replacement
- Solid pins for longer life and reliable electrical contact
- Watertight
Specifications
Specifications
- Country of Origin
- United States
- Width
- 8.800 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown);Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids).;Environmental - Operating Temperature - Max. Continuous +75°C;Min. Continuous -40°C;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Application
- High Ampacity Watertight Connections
- Environmental Conditions
- Watertight
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Standard
- UL Listed
- Voltage Rating
- 120/240 VAC
- Wire Size
- #8 AWG to #2 AWG
- Engineering Drawing 1 Display Text
- HBL460MI12WR AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Motor Disconnects
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 4-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A210
- Current Rating
- 60 A
- Series
- Non-Fused
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585012612
- Lowest Level UOM
- Each
Current / Amperage Rating60 A
Industry Standard(s)UL Listed
Amperage Rating60 A
ColorOrange
NEMA RatingNon-NEMA
Number of Wires4-Wire
Special FeaturesWatertight
TypeMechanical Interlock
Wattage15000
Voltage Rating Description120/240 VAC
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextIEC Pin & Sleeve Devices
Display SizeStandard Sized Product
Number Of Poles3-Pole
StyleReverse Service
Description - InvoicePS, IEC, MECHINT, 3P4W, 60A 125/250V,REV
Harmonization Code8537109170
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
