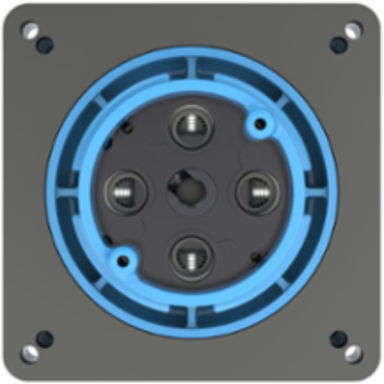

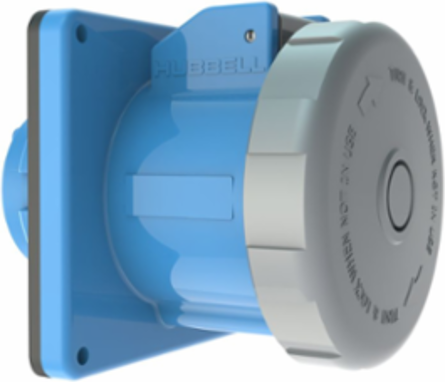

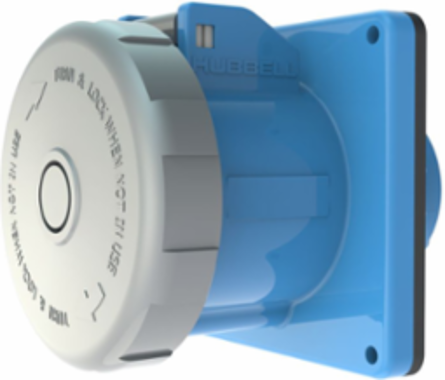

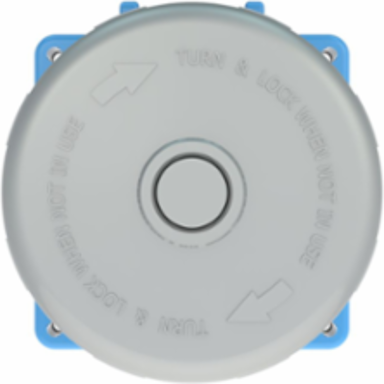

Hubbell Wiring Device-Kellems HBL460R9W Heavy Duty Watertight Receptacle, 60A, 3-Pole, 4-Wire, 250V AC
Hubbell Wiring Device-Kellems HBL460R9W Heavy Duty Watertight Receptacle, 60A, 3-Pole, 4-Wire, 250V AC
- MPN: HBL460R9W
- UPC: 783585404936
- PPN: HBL-HBL460R9W
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$767.28/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 60A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
- Watertight
Specifications
Specifications
- Country of Origin
- US
- Width
- 5.600 in
- Industry Standard(s)
- Listed To Standard UL1682
- Amperage Rating
- 60 A
- Color
- Bleu
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Special Features
- Watertight
- Type
- Watertight Receptacle
- Wattage
- 15000
- Voltage Rating Description
- 3 Phase 250 VAC
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, RECP, 3P4W, 60A 3P 250V, W/T
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Current Rating
- 60 A
- Series
- HBL Heavy Duty
- BOX SIZE
- 4.800x6.400x5.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585404936
- Case Weight
- 13.646 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.400 in
- Pallet Weight
- 869.400 lb.
Current / Amperage Rating60 A
Each - Width5.600 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Watertight Connections
Environmental ConditionsWatertight
Number of Poles3-Pole
PhaseThree Phase
StandardListed To Standard UL1682
Voltage Rating3 Phase 250 VAC
Wire Size#8 AWG to #2 AWG
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number460R9W
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack25.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585404935
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
