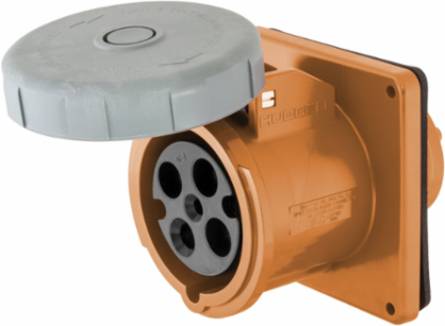

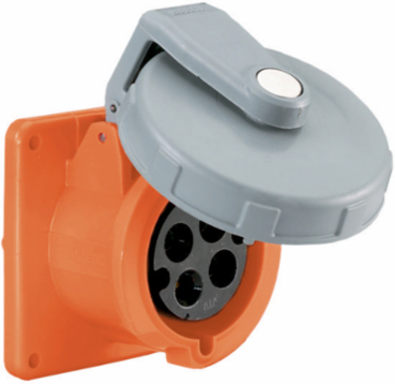

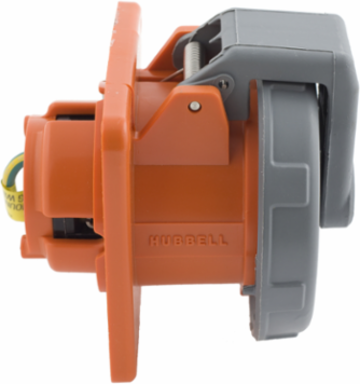

Hubbell Wiring Device-Kellems HBL4100R12W Watertight 100A IEC Female Receptacle, 125/250V, 3-Pole, 4-Wire
Hubbell Wiring Device-Kellems HBL4100R12W Watertight 100A IEC Female Receptacle, 125/250V, 3-Pole, 4-Wire
- MPN: HBL4100R12W
- UPC: 783585404080
- PPN: HBL-HBL4100R12W
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1063.88/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 100A 125/250V, 3-Pole 4- Wire Grounding, Terminal Screws, Orange, Watertight
Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
- Watertight
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL4100R12W AutoCAD Drawing
- General Literature Asset 2 Display Text
- IEC Pin & Sleeve Devices
- Country of Origin
- United States
- Width
- 6.400 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Application
- High Ampacity Watertight Connections
- Environmental Conditions
- Watertight
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Standard
- Listed To Standard UL1682
- Voltage Rating
- 125/250 VAC
- Wire Size
- #3 AWG to #1/0 AWG
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 4-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 4100R12W
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 23.650 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 6 EA
- Each - Pack Description
- Each
General Literature Asset 1 Display TextFood Processing Guide
General Literature Asset 3 Display TextEntertainment Product Solution Guide
Current / Amperage Rating100 A
Industry Standard(s)Listed To Standard UL1682
Amperage Rating100 A
ColorOrange
NEMA RatingNon-NEMA
Number of Wires4-Wire
Special FeaturesWatertight
TypeWatertight Receptacle
Wattage25000
Voltage Rating Description125/250 VAC
Display SizeStandard Sized Product
Number Of Poles3-Pole
StyleStandard Service
Description - InvoicePS, IEC, RECP, 3P4W, 100A 125/250V, W/T
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA12A180
Current Rating100 A
SeriesHBL Heavy Duty
BOX SIZE8.000x19.500x12.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585404080
Case Weight11.747 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
