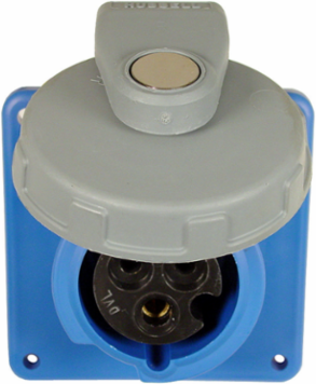

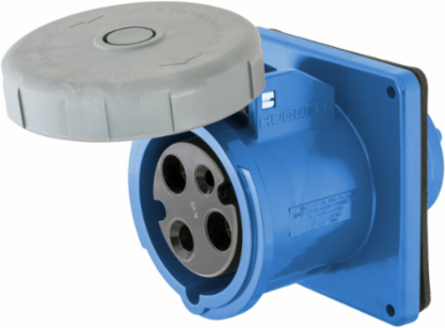

Hubbell Wiring Device-Kellems HBL320R6W Watertight IEC Female Receptacle, 20A 250V AC, 2-Pole 3-Wire, Blue

Watertight IEC Female Receptacle, 20A 250V AC, 2-Pole 3-Wire, Blue
Watertight IEC Female Receptacle, 20A 250V AC, 2-Pole 3-Wire, Blue
  • MPN: HBL320R6W
  • UPC: 783585403434
  • PPN: HBL-HBL320R6W
  • UNSPSC: 39121406

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$282.45/ EA

Description

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 20A 250V AC, 2-Pole 3- Wire Grounding, Terminal Screws, Blue, Watertight

Features

  • Corrosion-resistant self-closing gasketed cover
  • Insulated non-metallic housing
  • Color coded housings for easy identification
  • Watertight

Specifications

Amperage
20 A
Wattage
5000 W
Number of Wires
3-Wire
Wire Size
#14 AWG to #10 AWG
Material
Thermoplastic
Terminal Type
Pressure Terminal Screws
Cover Screw Material
Nickel-plated brass
Housing Material
Zytel® 101 Nylon
Ingress Protection
IP67
Flammability Rating
HB or better per UL 94 or CSA C22.2 No. 0.17
Country of Origin
US
Voltage250 V AC
Number of Poles2-Pole
Temperature Rating-40°C to 75°C
Width4.9 in
Mounting HardwareScrew Mounting
Cover MaterialReinforced Thermoplastic Polyester
Gasket MaterialSolid Neoprene
Mounting Flange MaterialZytel® 101 Nylon
StandardCSA C22.2 No. 182.1; UL Classified to IEC 60309-1, IEC 60309-2; UL Listed
ColorBlue
