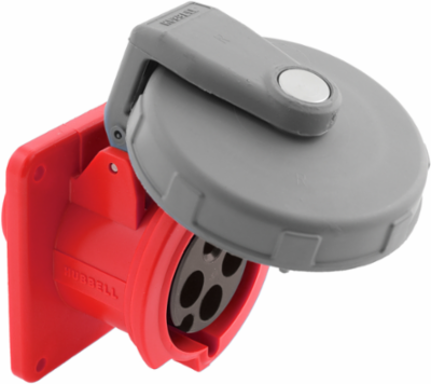

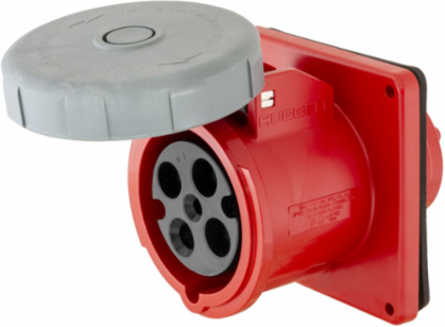

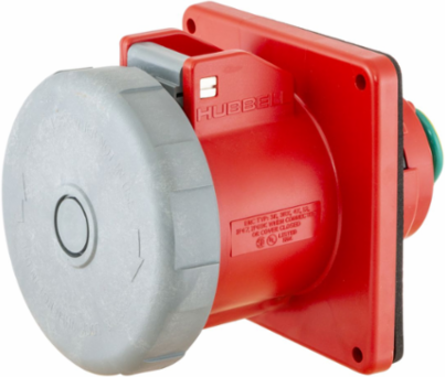

Hubbell Wiring Device-Kellems HBL4100R7W IEC 100A 3-Phase 480V AC Watertight Female Receptacle, 4-Wire Grounding
Hubbell Wiring Device-Kellems HBL4100R7W IEC 100A 3-Phase 480V AC Watertight Female Receptacle, 4-Wire Grounding
- MPN: HBL4100R7W
- UPC: 783585404103
- PPN: HBL-HBL4100R7W
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1003.65/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 100A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
- Watertight
Specifications
Specifications
- Country of Origin
- US
- Width
- 6.400 in
- Industry Standard(s)
- Listed To Standard UL1682
- Amperage Rating
- 100 A
- Color
- Red
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Special Features
- Watertight
- Type
- Watertight Receptacle
- Wattage
- 48000
- Voltage Rating Description
- 3 Phase 480 VAC
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, RECP, 3P4W, 100A 3P 480V, W/T
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Current Rating
- 100 A
- Series
- HBL Heavy Duty
- BOX SIZE
- 7.900x19.500x12.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585404103
- Case Weight
- 11.507 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.400 in
- Pallet Weight
- 968.100 lb.
Current / Amperage Rating100 A
Each - Width6.400 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Watertight Connections
Environmental ConditionsWatertight
Number of Poles3-Pole
PhaseThree Phase
StandardListed To Standard UL1682
Voltage Rating3 Phase 480 VAC
Wire Size#3 AWG to #1/0 AWG
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number4100R7W
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack23.350 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585404102
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
