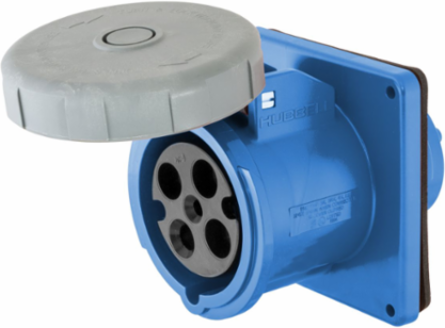

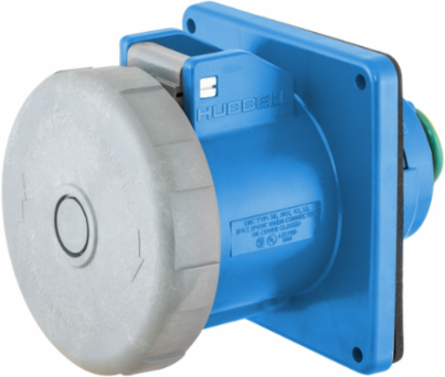

Hubbell Wiring Device-Kellems HBL420R9W Heavy Duty IEC Pin and Sleeve 20A Watertight Receptacle, 3-Phase, 250V AC, Blue
Hubbell Wiring Device-Kellems HBL420R9W Heavy Duty IEC Pin and Sleeve 20A Watertight Receptacle, 3-Phase, 250V AC, Blue
- MPN: HBL420R9W
- UPC: 783585404448
- PPN: HBL-HBL420R9W
- UNSPSC: 39121406
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$407.02/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
Features
- Corrosion-resistant self-closing gasketed cover
- Insulated non-metallic housing
- Color coded housings for easy identification
- Watertight
Specifications
- Voltage
- 3 Phase 250 VAC
- Number of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Wattage
- 5000
- Material
- Thermoplastic
- Environmental Rating
- Watertight, IP67
- Cover Material
- Reinforced Thermoplastic Polyester
- Gasket Material
- Solid Neoprene
- Mounting Type
- Screw Mounting
- EU RoHS Indicator
- Yes
- Class Code
- A12
- Country of Origin
- US
Amperage20 A
PhaseThree Phase
Wire Size#14 AWG to #10 AWG
TypeWatertight Receptacle
ColorBlue
Operating Temperature Range-40°C to 75°C
Cover Screw MaterialNickel-plated Brass
Housing MaterialZytel® 101 Nylon
StandardCSA C22.2 No. 182.1; UL Classified IEC 60309-1/2; UL Listed File E146032; RoHS Compliant
NEMA RatingNon-NEMA
Sub Class CodeA12A180
StyleStandard Service
