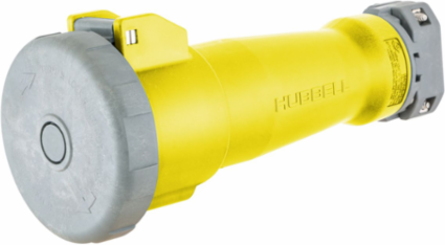

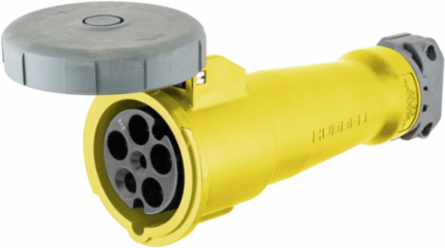

Hubbell Wiring Device-Kellems M5100C7 Marine Grade IEC Pin & Sleeve Connector, 100A 4-Pole 5-Wire, 277/480V AC, Yellow
- MPN: M5100C7
- UPC: 783585510095
- PPN: HBL-M5100C7
- UNSPSC: 39121421
CAD
$2106.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Features
- Insulated non-metallic housing
- Self-closing gasketed cover
- Color coded housings for easy identification
- Watertight
Documentation & Downloads
Specifications
Additional
- Amperage
- 100 A
- Number of Poles
- 4-Pole
- Operating Temperature
- -40°C to 75°C
- Conductor Range
- #4 AWG to #2 AWG
- Gasket Material
- Neoprene
- Cord Clamps Material
- PBT
- Ingress Protection
- Watertight, UL Type 4X, 12, IP69k
- Certifications
- UL Listed, CSA Certified, UL Classified IEC 60309-1, IEC 60309-2
- Country of Origin
- US
Voltage3-Phase Y 277/480 V AC
Number of Conductors5-Wire Grounding
Width6.250 in
Material - Mounting HardwareCord Mounted
Gaskets MaterialSantoprene
MaterialInsulated Non-metallic (PBT)
Impact ResistancePer CSA C22.2 No. 182.1 / UL1682
EU RoHS IndicatorYes
ColorYellow
