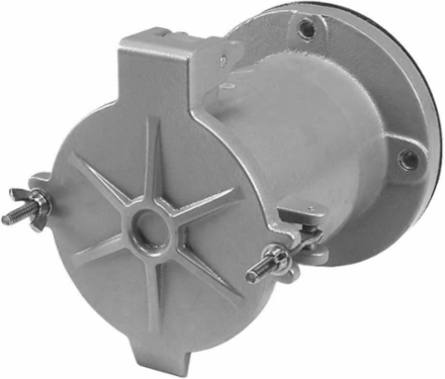

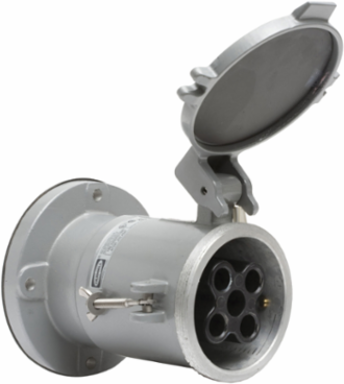

Hubbell Wiring Device-Kellems M5200RS1 Marine Grade 200A Female Receptacle, 4-Pole, 5-Wire, Watertight
- MPN: M5200RS1
- UPC: 783585161839
- PPN: HBL-M5200RS1
- UNSPSC: 39121406
CAD
$2938.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve Marine Grade Female Receptacle Interior, 200A 600V AC, 4-Pole 5-Wire Grounding, Terminal Screws
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 9.400 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
- Application
- Metallic with Nylon Shroud
- NEMA Rating
- Non-NEMA
- Number of Wires
- 5-Wire
- Standard
- CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
- Voltage Rating
- 600 VAC/250 VDC
- Engineering Drawing 1 Display Text
- M5200RS1 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 5-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A200
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 10.650 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585161838
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating200 A
Industry Standard(s)CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
Amperage Rating200 A
Environmental ConditionsWatertight
Number of Poles4-Pole
Special FeaturesWatertight
TypeWatertight Receptacle
Voltage Rating Description600V AC/250V DC
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized Product
Number Of Poles4-Pole
StyleStandard Service,Corrosion Resistant
Description - InvoiceMARINE PS, INS, REPL, 4P5W, 200A 600V,S1
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesUL 1686 Class 1 Insulgrip®
BOX SIZE7.600x13.200x9.400 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585161839
Case Weight10.650 lb.
Lowest Level UOMEach
Pallet Height45.600 in
Pallet Weight958.500 lb.
NAICS Code335931A104
