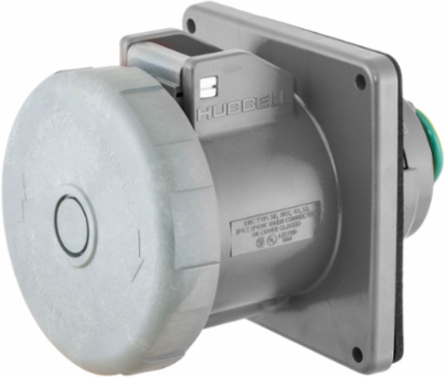

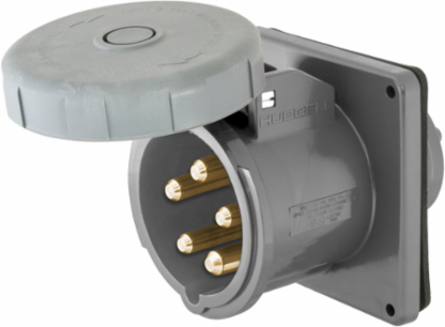

Hubbell Wiring Device-Kellems M5100B7R Marine Grade 100A 3-Phase Wye Inlet, 4-Pole 5-Wire, Watertight
- MPN: M5100B7R
- UPC: 783585510118
- PPN: HBL-M5100B7R
- UNSPSC: 39121406
CAD
$1975.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Male, Flanged Inlet, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 6.400 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Application
- Marine Wiring Devices
- Dielectric Strength
- Withstands 3000V Minimum in
- Insulation
- Insulated Body
- Number of Wires
- 5-Wire
- Standard
- CSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
- Type
- Watertight Inlet
- Wattage
- 48000
- Voltage Rating Description
- 3 Phase Y 277/480 VAC
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Display Size
- Standard Sized Product
- Number Of Wires
- 5-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A180
- Current Rating
- 100 A
- Series
- Corrosion Resistant
- BOX SIZE
- 6.000x12.000x8.000 (in)
- Carton - Number of Sub Packs
- 6
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585510118
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
Current / Amperage Rating100 A
Industry Standard(s)CSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Amperage Rating100 A
ColorGray
Environmental ConditionsWatertight
Number of Poles4-Pole
PhaseThree Phase
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating3 Phase Y 277/480 VAC
Wire Size#3 AWG to #1/0 AWG
Engineering Drawing 1 Display TextM5100B7R AutoCAD Drawing
General Literature Asset 2 Display TextIEC Pin & Sleeve Devices
ConnectivityPressure Terminal Screws
Number Of Poles4-Pole
StyleReverse Service
Description - InvoiceMARINE PS INLET, 4P5W, 100A 277/480V
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack22.200 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
