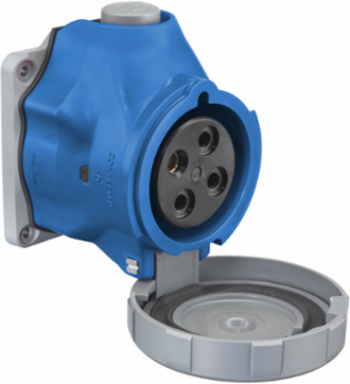

Hubbell Wiring Device-Kellems HBLS460R9W IEC Switched Receptacle 60A 3-Pole 4-Wire NEMA 4X/IP69K
- MPN: HBLS460R9W
- UPC: 783585478654
- PPN: HBL-HBLS460R9W
- UNSPSC: 39121406
CAD
$1296.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve, Receptacle, Switched, 60A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA4X/IP69K
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Specifications
Additional
- Amperage
- 60/63 A
- Number of Poles
- 3-Pole
- Dielectric Voltage
- 3000 V AC
- Operating Temperature Range
- -40°C to 75°C
- Material
- PBT, Solid Neoprene, Santoprene, High-Impact Thermoset
- Certifications
- UL Listed, CSA Certified, UL Classified IEC 60309-1, IEC 60309-2
- Color
- Blue
- Country of Origin
- PR
Voltage3 Phase 250 VAC
Number of Wires4-Wire
Max Working Voltage600 V RMS
Ingress ProtectionNEMA 4X, IP69K
FlammabilityV-0
Impact Resistance StandardCSA C22.2 No. 182.1 / UL1682
SeriesAdvantage® Switch-Rated
